Components [03/2017 - ]

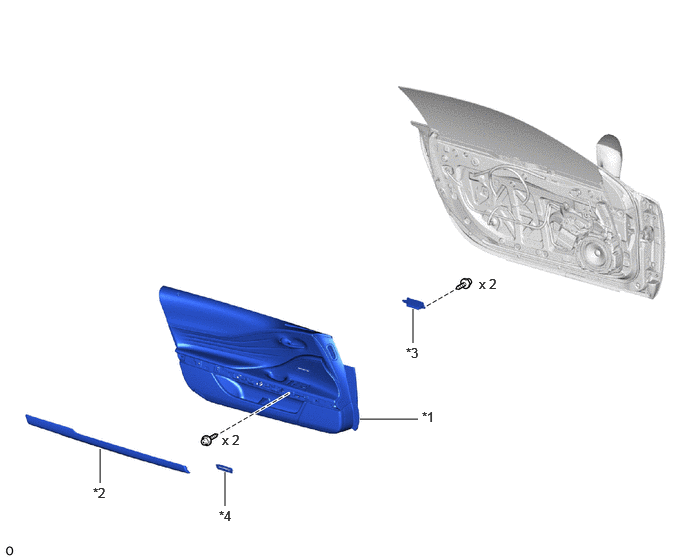

Fig 1: Seat Memory Switch Replacement Components
GTY820648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH *2 FRONT DOOR TRIM COVER SUB-ASSEMBLY LH
*3 SEAT MEMORY SWITCH *4 BRACKET
