Reassembly [03/2017 - 09/2018]: Procedure

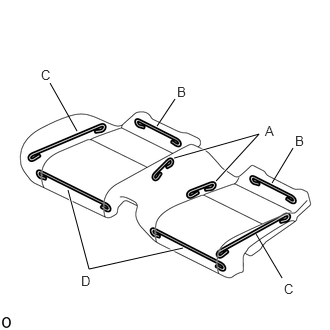

1. Install the 8 seat cover wires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.
   • For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.
   • Make sure to read the precautions before preparing the wire.

     Refer to PRECAUTION [03/2017 - ]

   Length

   A	100 mm (3.94 in.)
   B	250 mm (9.84 in.)
   C	320 mm (1.05 ft.)
   D	450 mm (1.48 ft.)

   HINT:

   The dimensions shown in the illustration are the length.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Refer to PRECAUTION [03/2017 - ]

1. Pass the 2 pieces of strap from the bench type rear seat cushion cover through to the rear side via the hole in the bench type rear seat cushion pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

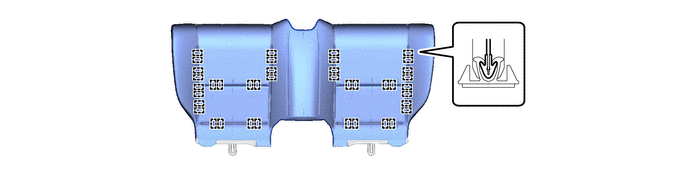

2. Attach the hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the bench type rear seat cushion cover.

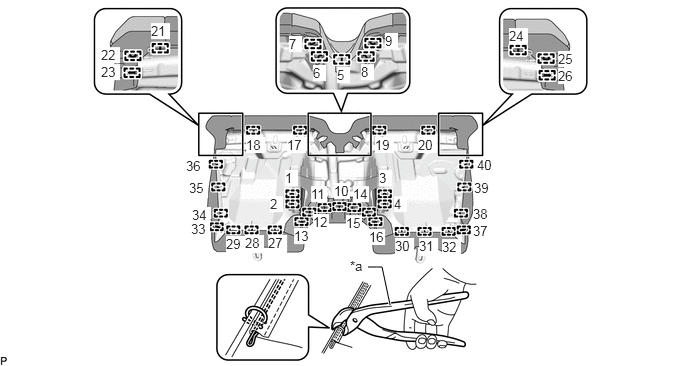

3. Using hog ring pliers, install 40 new hog rings in the order shown in the illustration.
   Fig 1: Identifying Hog Ring Installation Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Hog Ring Pliers

   -

   -

   NOTE:

   • Be careful not to damage the bench type rear seat cushion cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.

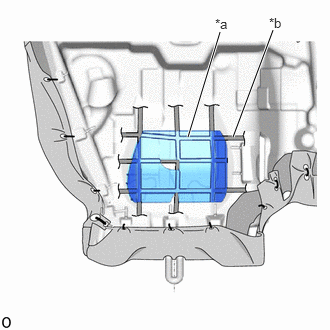

1. Remove the peeling paper on a new rear seat cushion pad LH trying not to touch the adhesional surface of the double-sided tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Groove
   *b	Rib

2. Align the groove of the rear seat cushion pad LH with the rib on the bench type rear seat cushion pad rear surface and install it.

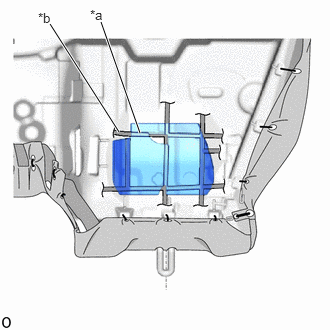

1. Remove the peeling paper on a new rear seat cushion pad RH trying not to touch the adhesional surface of the double-sided tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Groove
   *b	Rib

2. Align the groove of the rear seat cushion pad RH with the rib on the bench type rear seat cushion pad rear surface and install it.

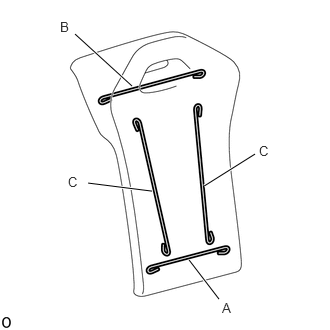

1. Install the 4 seat cover wires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.
   • For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.
   • Make sure to read the precautions before preparing the wire.

     Refer to PRECAUTION [03/2017 - ]

   Length

   A	250 mm (9.84 in.)
   B	370 mm (1.21 ft.)
   C	400 mm (1.31 ft.)

   HINT:

   The dimensions shown in the illustration are the length.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• When installing a separate type rear seatback cover LH, refer to Precaution in order to prevent wrinkles from forming.

  Refer to PRECAUTION [03/2017 - ]

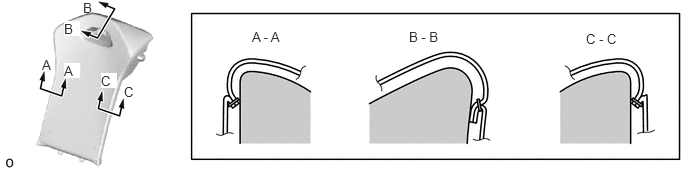

• Fix the cover seam allowances in the same direction as shown in the illustration.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the separate type rear seatback cover LH on the separate type rear seatback pad LH.

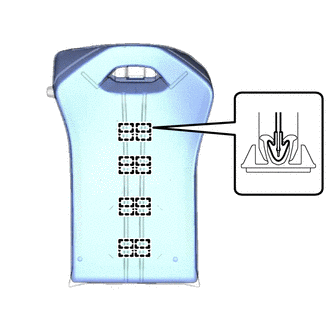

2. Attach the hooks in the order shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the separate type rear seatback cover LH.

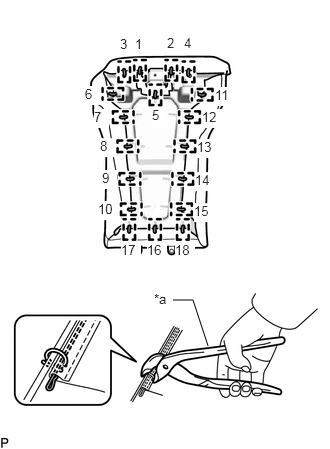

3. Using hog ring pliers, install the separate type rear seatback cover LH to the separate type rear seatback pad LH with 18 new hog rings in the order shown in the illustration.
   Fig 2: Identifying Hog Ring Installation Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hog Ring Pliers

   NOTE:

   • Be careful not to damage the separate type rear seatback cover LH.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover LH.

HINT:

Use the same procedure described for the LH side.
