Components [03/2017 - ]

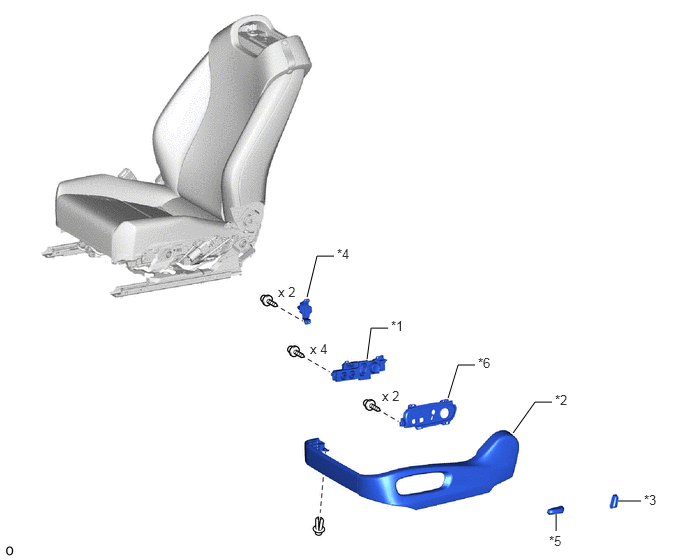

Fig 1: Power Seat Switch Replacement Components
GTY811311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT POWER SEAT SWITCH LH *2 FRONT SEAT CUSHION SHIELD LH
*3 RECLINING POWER SEAT SWITCH KNOB *4 SEAT ADJUSTER SHIELD CLAMP BRACKET LH
*5 SLIDE AND VERTICAL POWER SEAT SWITCH KNOB *6 SWITCH BEZEL
