Components [03/2017 - ]

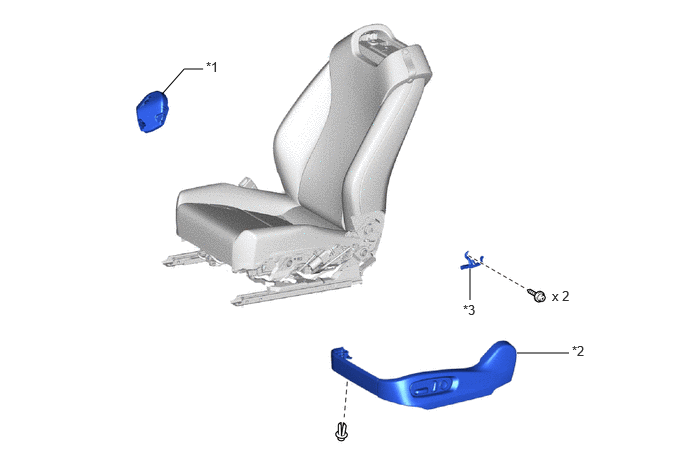

Fig 1: Limit Switch Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT INNER SEAT CUSHION SHIELD LH	*2	FRONT SEAT CUSHION SHIELD LH
*3	LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR (LIMIT SWITCH)	-	-

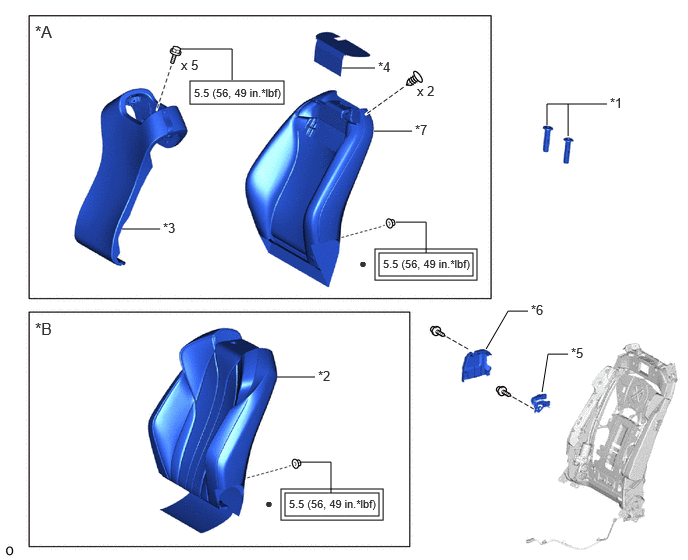

Fig 2: Limit Switch Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH	*2	SEAT ADJUSTER COVER CAP LH
*3	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

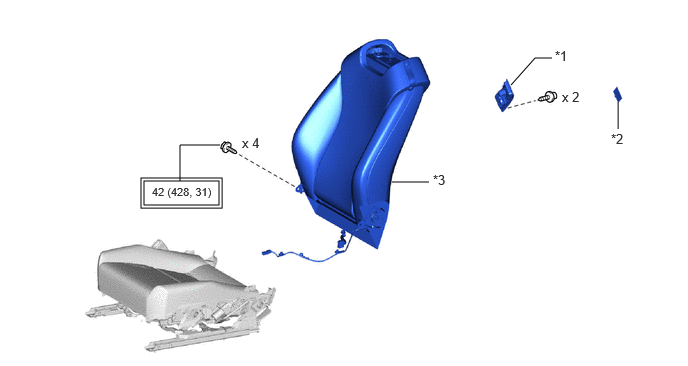

Fig 3: Limit Switch Replacement Components With Torque Specifications (3 Of 3)

*A	for Standard Seat Type	*B	for Sports Seat Type
*1	FRONT SEAT HEADREST SUPPORT	*2	FRONT SEATBACK PAD WITH COVER LH
*3	FRONT SEATBACK SUB-ASSEMBLY LH	*4	FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH
*5	LH SEAT FRONT INNER SEATBACK EDGE PROTECTOR (LIMIT SWITCH)	*6	SEAT RECLINING ADJUSTER INSIDE COVER LH
*7	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
