Components [03/2017 - ]

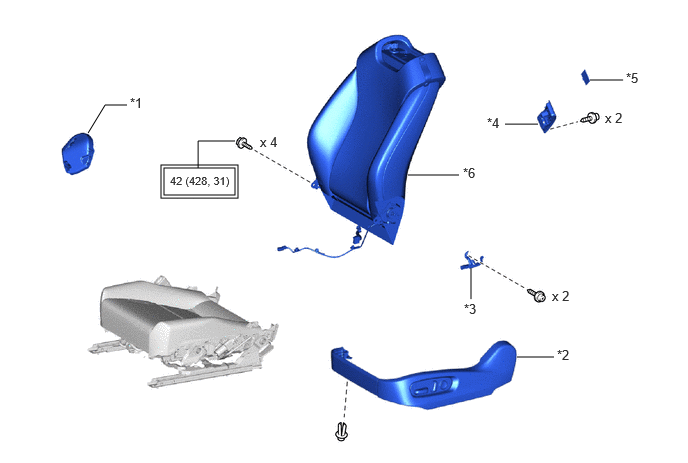

Fig 1: Front Seatback Heater Replacement Components With Torque Specifications (1 Of 2)

GTY795605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT INNER SEAT CUSHION SHIELD LH	*2	FRONT SEAT CUSHION SHIELD LH
*3	LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR	*4	RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH
*5	SEAT ADJUSTER COVER CAP LH	*6	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

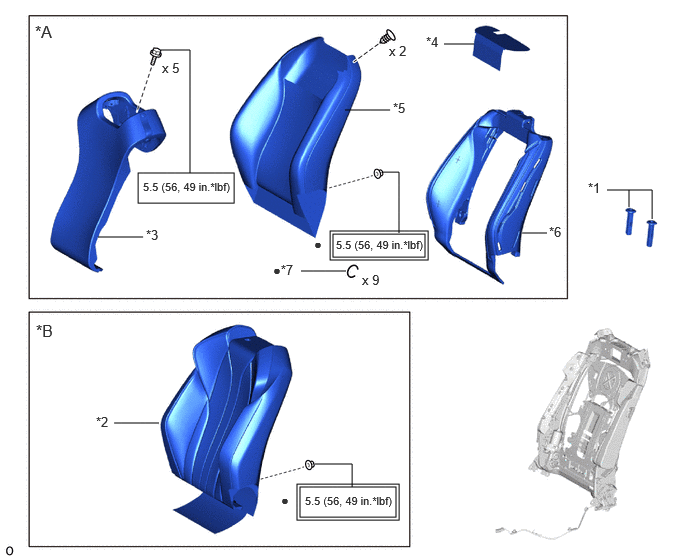

Fig 2: Front Seatback Heater Replacement Components With Torque Specifications (2 Of 2)

GTY828620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Standard Seat Type	*B	for Sports Seat Type
*1	FRONT SEAT HEADREST SUPPORT	*2	FRONT SEATBACK PAD WITH COVER LH (FRONT SEATBACK HEATER)
*3	FRONT SEATBACK SUB-ASSEMBLY LH (FRONT SEATBACK HEATER)	*4	FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH
*5	SEPARATE TYPE FRONT SEATBACK COVER (FRONT SEATBACK HEATER)	*6	SEPARATE TYPE FRONT SEATBACK PAD
*7	HOG RING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
