Components [03/2017 - ]

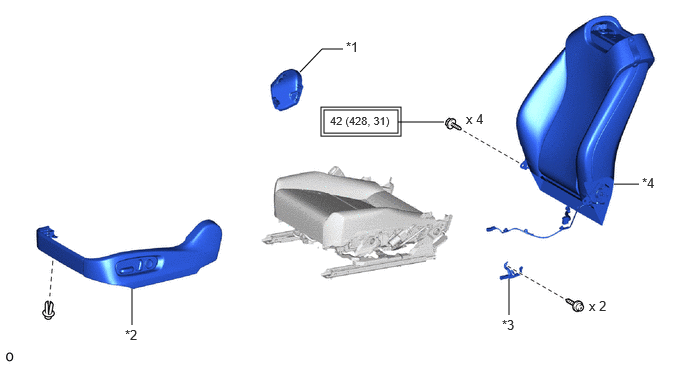

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT INNER SEAT CUSHION SHIELD LH	*2	FRONT SEAT CUSHION SHIELD LH
*3	LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR	*4	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

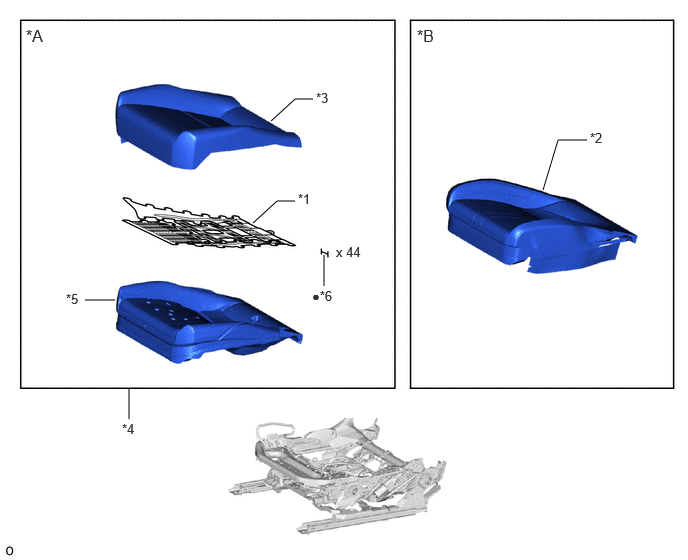

Fig 2: Front Seat Cushion Heater Replacement Components (2 Of 2)

*A	for Standard Seat Type	*B	for Sports Seat Type
*1	FRONT SEAT CUSHION HEATER ASSEMBLY LH	*2	FRONT SEAT CUSHION PAD WITH COVER LH (FRONT SEAT CUSHION HEATER)
*3	SEPARATE TYPE FRONT SEAT CUSHION COVER	*4	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
*5	SEPARATE TYPE FRONT SEAT CUSHION PAD	*6	TACK PIN
•	Non-reusable part	-	-
