Components [04/2020 - ]
Fig 1: Front Power Seat Motor Assembly Replacement Components With Torque Specifications [04/2020 - ] (1 Of 3)
| *A | for Front Passenger Seat | - | - |
| *1 | FRONT INNER SEAT CUSHION SHIELD LH | *2 | FRONT SEAT CUSHION SHIELD LH |
| *3 | FRONT SEAT INNER BELT ASSEMBLY LH | *4 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *5 | LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR | *6 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
| *7 | FRONT SEAT BELT ANCHOR PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

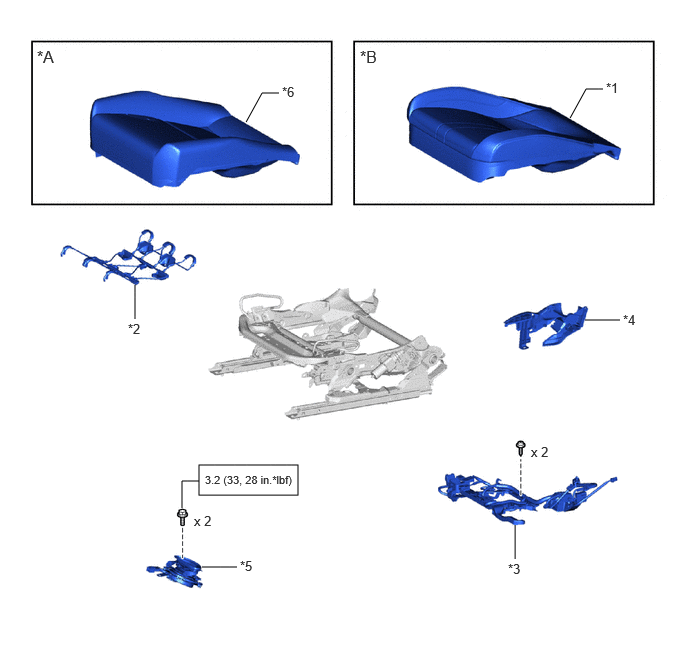

Fig 2: Front Power Seat Motor Assembly Replacement Components With Torque Specifications [04/2020 - ] (2 Of 3)
| *A | for Standard Seat Type | *B | for Sports Seat Type |
| *1 | FRONT SEAT CUSHION PAD WITH COVER LH | *2 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH |
| *3 | FRONT SEAT CUSHION WIRE HARNESS HOLDER LH | *4 | RECLINING ADJUSTER INSIDE COVER LH |
| *5 | SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH | *6 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Front Power Seat Motor Assembly Replacement Components With Torque Specifications [04/2020 - ] (3 Of 3)
| *1 | POWER SEAT LIFTER MOTOR ASSEMBLY LH | *2 | POWER SEAT TILT MOTOR ASSEMBLY LH |
| *3 | SPACER | *4 | PLATE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
