Disassembly [03/2017 - 09/2018]: Procedure

  1. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH

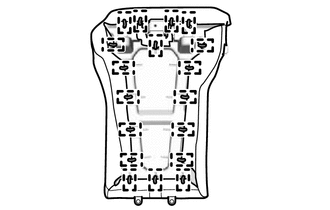

    1. Remove the 18 hog rings.
      GTY824575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

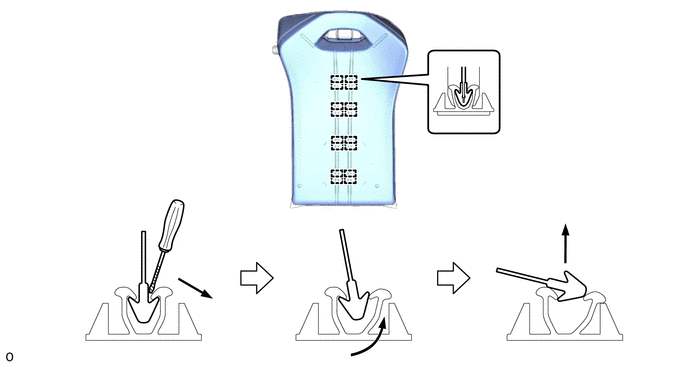

    2. Using a thin-bladed screwdriver, detach the hooks and remove the separate type rear seatback cover LH from the separate type rear seatback pad LH.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

      GTY788414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -
  2. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE SEAT COVER WIRE

    HINT:

    Use the same procedure for the other side.

    1. Remove the 4 seat cover wires.
      GTY824574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT CUSHION PAD LH

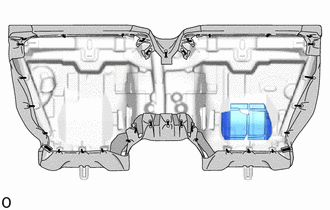

    1. Remove the rear seat cushion pad LH from the bench type rear seat cushion pad.
      GTY838096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the rear seat cushion pad LH after removing it.

  5. REMOVE REAR SEAT CUSHION PAD RH

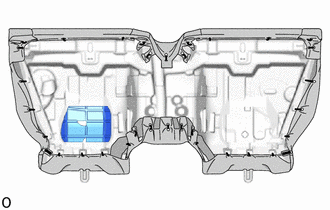

    1. Remove the rear seat cushion pad RH from the bench type rear seat cushion pad.
      GTY824411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the rear seat cushion pad RH after removing it.

  6. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

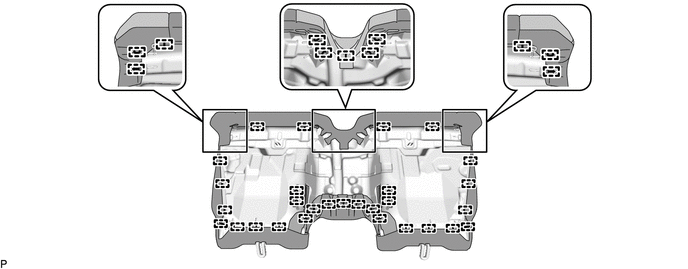

    1. Remove the 40 hog rings.
      GTY811619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

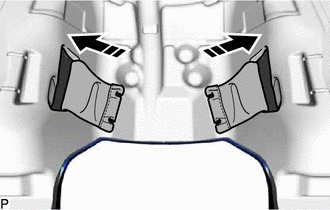

    2. Pass the 2 pieces of strap through to the front side via the hole in the seat cushion pad as shown in the illustration.
      GTY830320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

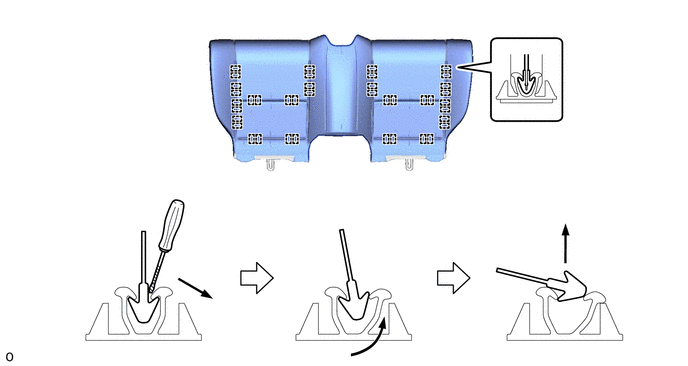

    3. Using a thin-bladed screwdriver, detach the hooks and remove the bench type rear seat cushion cover from the bench type rear seat cushion pad.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

      GTY815913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -
  7. REMOVE SEAT COVER WIRE

    HINT:

    Use the same procedure for the other side.

    1. Remove the 8 seat cover wires.
      GTY787720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
