Components [03/2017 - 09/2018]

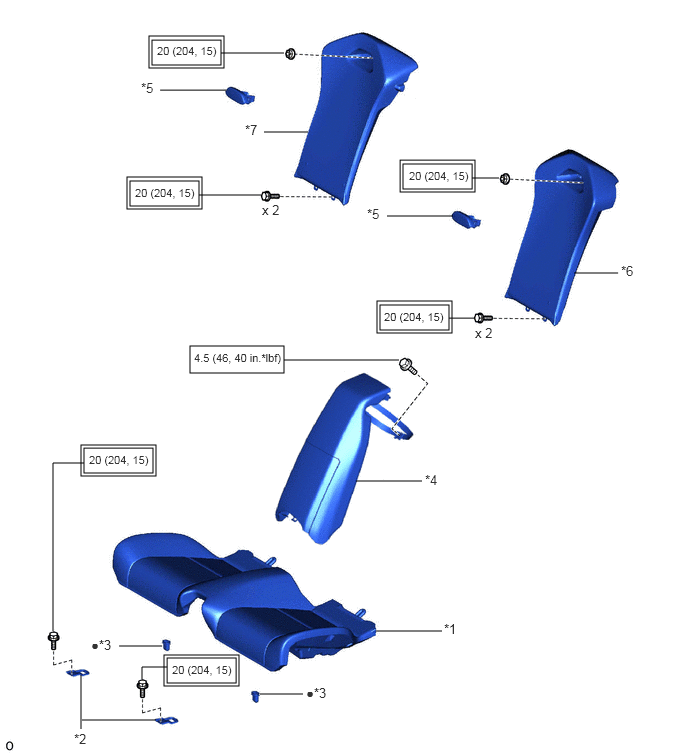

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION HOLDER BRACKET
*3	REAR SEAT CUSHION LOCK HOOK	*4	REAR SEAT SIDE GARNISH
*5	REAR SEATBACK ASSEMBLY LH	*6	REAR SEATBACK ASSEMBLY RH
*7	REAR SEATBACK COVER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

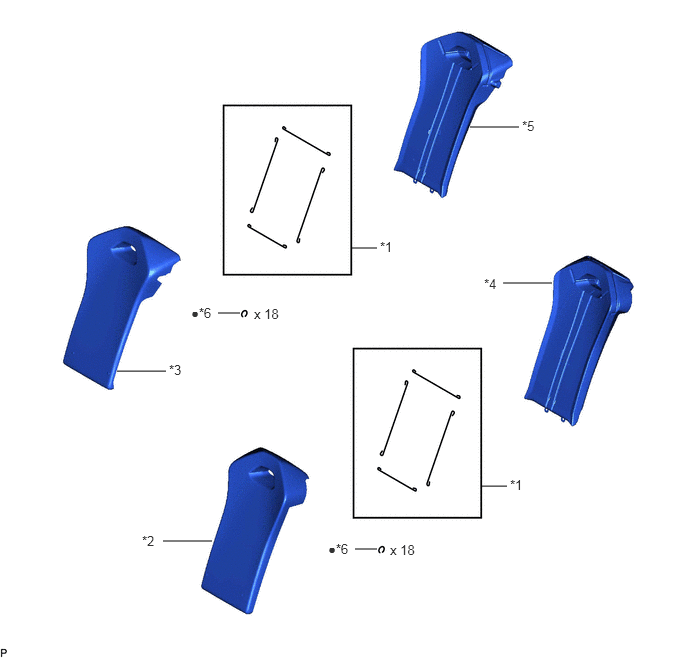

Fig 2: Rear Seat Assembly Replacement Components [03/2017 - 09/2018] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEAT COVER WIRE	*2	SEPARATE TYPE REAR SEATBACK COVER LH
*3	SEPARATE TYPE REAR SEATBACK COVER RH	*4	SEPARATE TYPE REAR SEATBACK PAD LH
*5	SEPARATE TYPE REAR SEATBACK PAD RH	*6	HOG RING
•	Non-reusable part	-	-

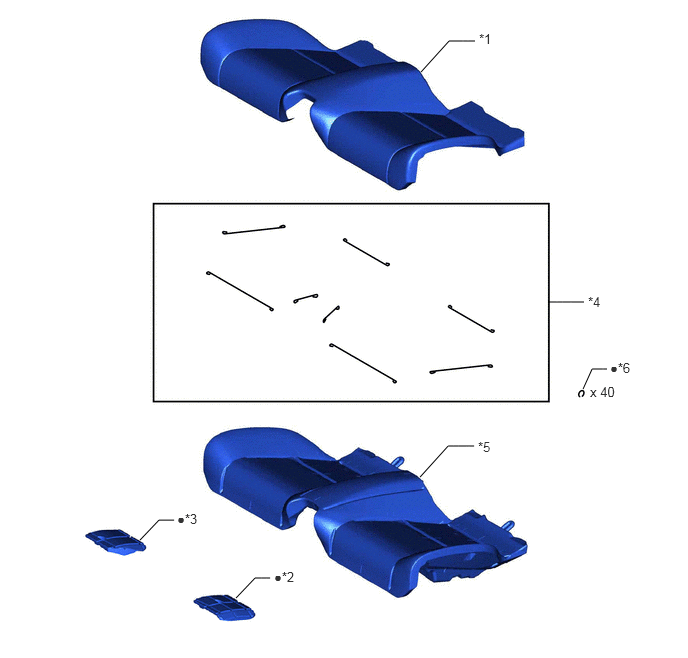

Fig 3: Rear Seat Assembly Replacement Components [03/2017 - 09/2018] (3 Of 3)

*1	BENCH TYPE REAR SEAT CUSHION COVER	*2	REAR SEAT CUSHION PAD LH
*3	REAR SEAT CUSHION PAD RH	*4	SEAT COVER WIRE
*5	BENCH TYPE REAR SEAT CUSHION PAD	*6	HOG RING
•	Non-reusable part	-	-
