Removal [03/2017 - 05/2023]: Procedure
- PRECAUTION WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.
Refer to PRECAUTION [03/2017 - 05/2023]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- Disable the auto tilt away function by changing the customize parameter.
Refer to CUSTOMIZE PARAMETERS [03/2017 - ]
NOTE:Record the current customize parameter setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the auto tilt away function to be disabled when the engine switch is turned off.
- Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.
- Turn the engine switch off.
- Disable the auto tilt away function by changing the customize parameter.
- REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]
- REMOVE FRONT SEAT HEADREST ASSEMBLY
- for Standard Seat Type:

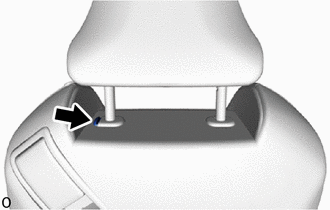

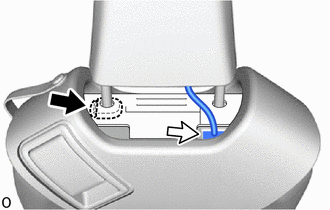

- While pressing the lock release knob from the top of the front upper seatback cover sub-assembly LH, gently lift up the front seat headrest assembly.
Lock Release Knob Connector HINT:
As the lock release knob is positioned underneath the front upper seatback cover sub-assembly it cannot be visually checked. Therefore, insert a finger from the top of the front upper seatback cover sub-assembly as shown in the illustration to release the lock.
- Stop midway and disconnect the connector of the front seat headrest assembly.NOTE:
If the front seat headrest assembly is lifted up too far before disconnecting the connector, the wire harness may be damaged.
- While pressing the lock release knob from the top of the front upper seatback cover sub-assembly LH, lift up the front seat headrest assembly to the end and remove it.
- While pressing the lock release knob from the top of the front upper seatback cover sub-assembly LH, gently lift up the front seat headrest assembly.
- for Sport Seat Type:
- for Standard Seat Type:
- REMOVE OUTER SEAT TRACK COVER LH
- Operate the slide and vertical power seat switch knob to slide the front seat assembly LH to the frontmost position.

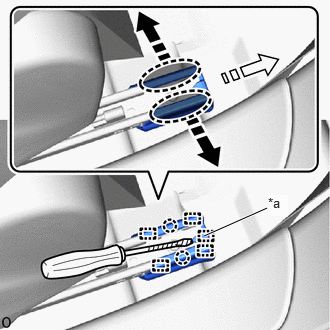

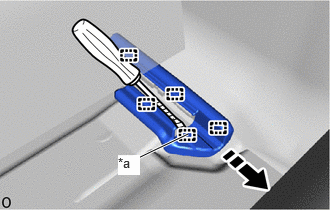

- Using a thin-bladed screwdriver, detach the guide pin.
*a Guide Pin Place Hand Here Remove in this Direction (1) Remove in this Direction (2) Protective Tape HINT:
Tape the thin-bladed screwdriver tip before use.
- Place your hands at the positions shown in the illustration and pull in the removal direction (1) to detach the claws.
- Slide in the removal direction (2) to detach the guides and remove the outer seat track cover LH.
- REMOVE INNER SEAT TRACK BRACKET COVER LH
- REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH
- Operate the slide and vertical power seat switch knob to slide the front seat assembly LH to the rearmost position.
Place Hand Here Remove in this Direction (1) Remove in this Direction (2) Place your hands at the positions shown in the illustration and pull in the removal direction (1) to detach the claws.
- Slide in the removal direction (2) to detach the guides and remove the front outer seat track bracket cover LH.

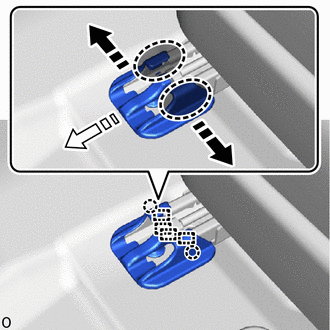

- REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH

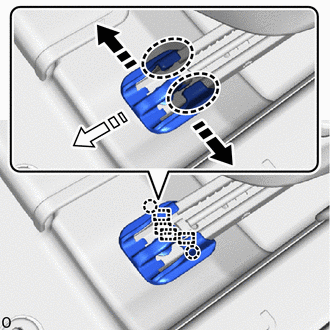

- Place your hands at the positions shown in the illustration and pull in the removal direction (1) to detach the claws.
Place Hand Here Remove in this Direction (1) Remove in this Direction (2) - Slide in the removal direction (2) to detach the guides and remove the front inner seat track bracket cover LH.
- Place your hands at the positions shown in the illustration and pull in the removal direction (1) to detach the claws.
- REMOVE FRONT SEAT ASSEMBLY LH

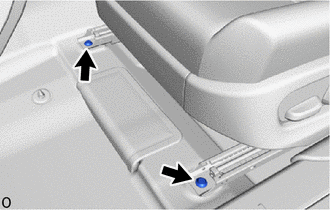

- Using a T50 "TORX" socket wrench, remove the 2 "TORX" screws.
- Operate the slide and vertical power seat switch knob to slide the front seat assembly LH to the frontmost position.

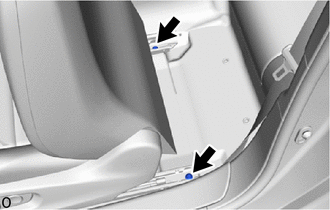

- Using a T50 "TORX" socket wrench, remove the 2 "TORX" screws.
- Operate the slide and vertical power seat switch knob to slide the front seat assembly LH to the center position.
- Operate the reclining power seat switch knob to set the seatback of the front seat assembly LH perpendicular.
- Operate the slide and vertical power seat switch knob to set the seat cushion lifter and vertical position of the front seat assembly LH to the uppermost position.
- Disconnect the cable from the negative (-) battery terminal.
Refer to PROCEDURE - Step 2
WARNING:- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
- If an SRS part is accidentally deployed, it may cause a serious injury.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Tilt the front seat assembly LH backward.NOTE:
Do not damage the front seat assembly LH or interior parts.

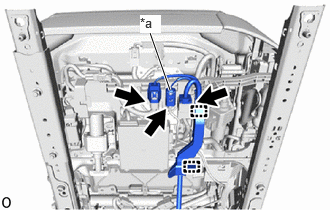

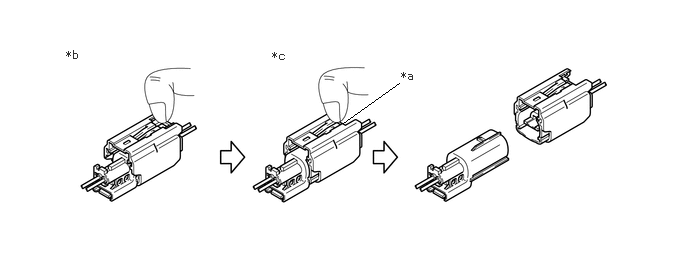

- Detach the wire harness protector clamps and disconnect the 3 connectors.
*a Front Seat Airbag Assembly LH Connector - Disconnect the front seat airbag assembly LH connector.

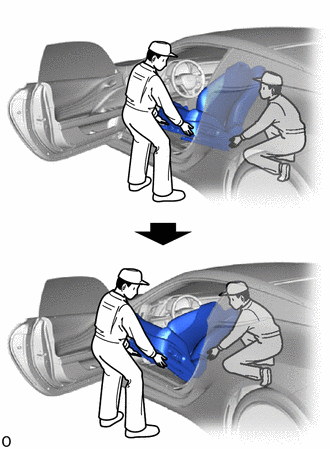

- Remove the front seat assembly LH from the vehicle.NOTE:
- 2 or more people are required when carrying the front seat assembly LH out of the vehicle.
- Protect the front seat legs.
- Do not damage the front seat assembly LH, body exterior or interior parts.
- Using a T50 "TORX" socket wrench, remove the 2 "TORX" screws.
