Components [03/2017 - 04/2020]

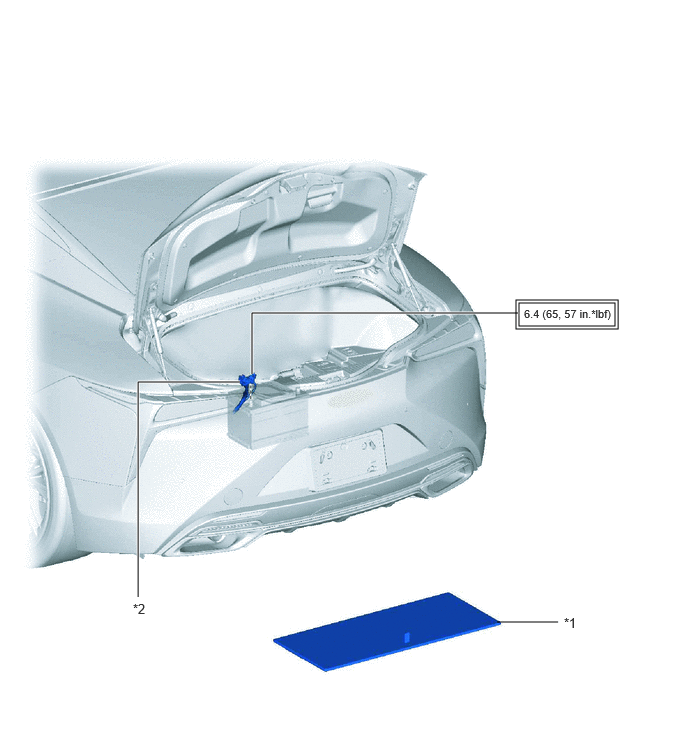

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (1 Of 13)
| *1 | NO. 2 DECK BOARD | *2 | NEGATIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

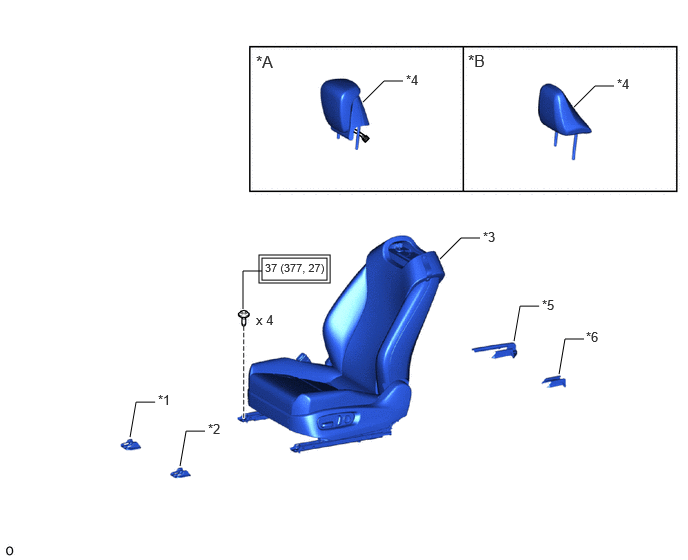

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (2 Of 13)
| *A | for Standard Seat Type | *B | for Sports Seat Type |
| *1 | FRONT INNER SEAT TRACK BRACKET COVER LH | *2 | FRONT OUTER SEAT TRACK BRACKET COVER LH |
| *3 | FRONT SEAT ASSEMBLY LH | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | INNER SEAT TRACK BRACKET COVER LH | *6 | OUTER SEAT TRACK COVER LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

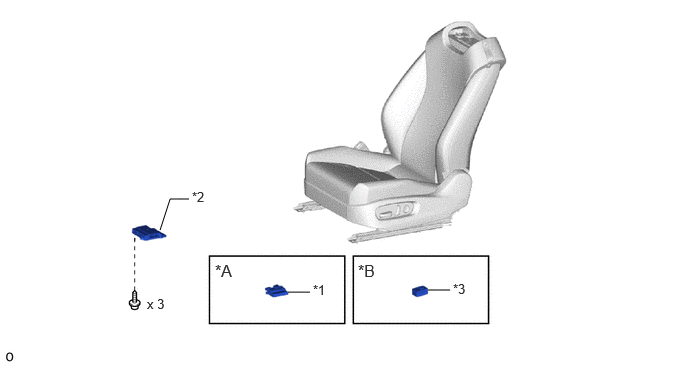

| *A | for Front Passenger Seat | *B | w/ Seat Heater System |
| *1 | OCCUPANT DETECTION ECU | *2 | POSITION CONTROL ECU ASSEMBLY |
| *3 | SEAT HEATER CONTROL SUB-ASSEMBLY LH | - | - |

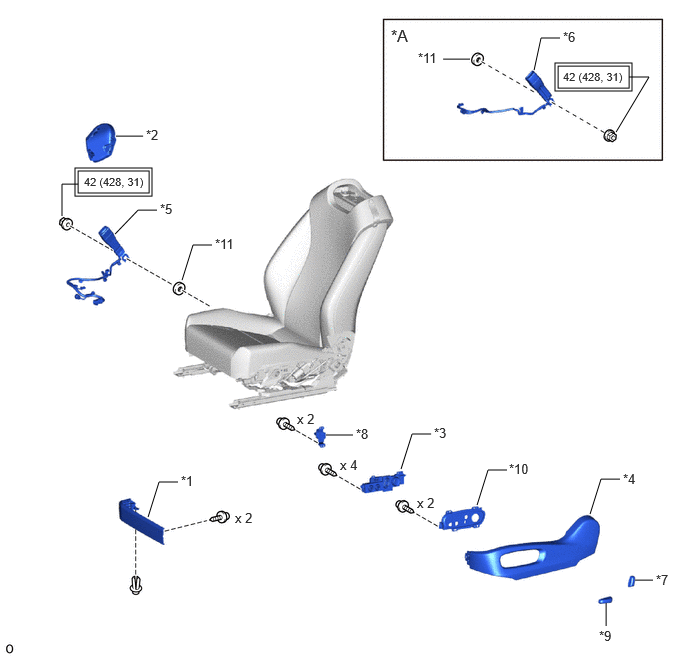

Fig 4: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (4 Of 13)
| *A | for Front Passenger Seat | - | - |
| *1 | FRONT INNER NO. 1 SEAT CUSHION SHIELD LH | *2 | FRONT INNER SEAT CUSHION SHIELD LH |
| *3 | FRONT POWER SEAT SWITCH LH | *4 | FRONT SEAT CUSHION SHIELD LH |
| *5 | FRONT SEAT INNER BELT ASSEMBLY LH | *6 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *7 | RECLINING POWER SEAT SWITCH KNOB | *8 | SEAT ADJUSTER SHIELD CLAMP BRACKET LH |
| *9 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB | *10 | SWITCH BEZEL |
| *11 | FRONT SEAT BELT ANCHOR PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

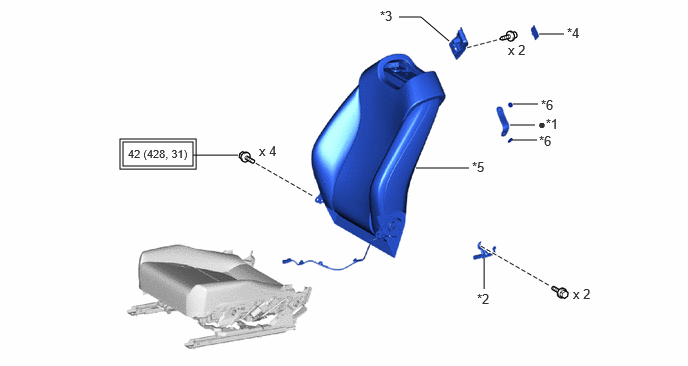

Fig 5: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (5 Of 13)
| *1 | FRONT SEATBACK POCKET BAND | *2 | LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR |
| *3 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH | *4 | SEAT ADJUSTER COVER CAP LH |
| *5 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *6 | FRONT SHOULDER BELT HANGER CAP LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

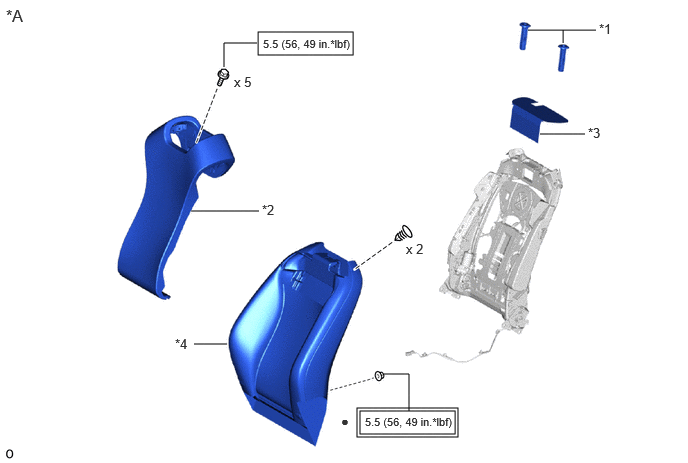

Fig 6: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (6 Of 13)
| *A | for Standard Seat Type | - | - |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | FRONT SEATBACK SUB-ASSEMBLY LH |
| *3 | FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH | *4 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

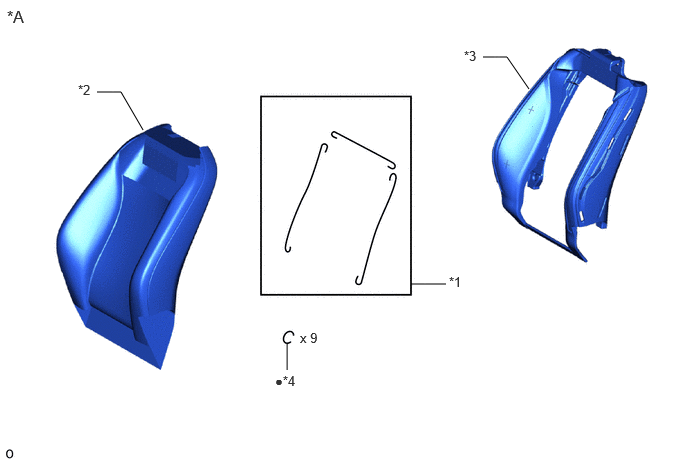

| *A | for Standard Seat Type | - | - |
| *1 | SEAT COVER WIRE | *2 | SEPARATE TYPE FRONT SEATBACK COVER |
| *3 | SEPARATE TYPE FRONT SEATBACK PAD | *4 | HOG RING |
| • | Non-reusable part | - | - |

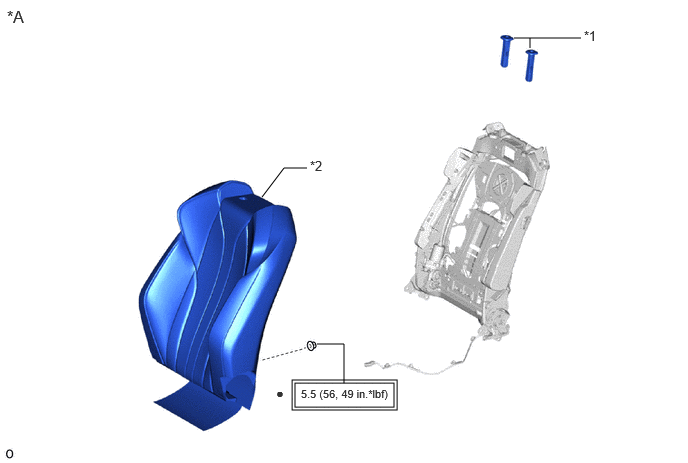

Fig 8: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (8 Of 13)
| *A | for Sports Seat Type | - | - |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | FRONT SEATBACK PAD WITH COVER LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

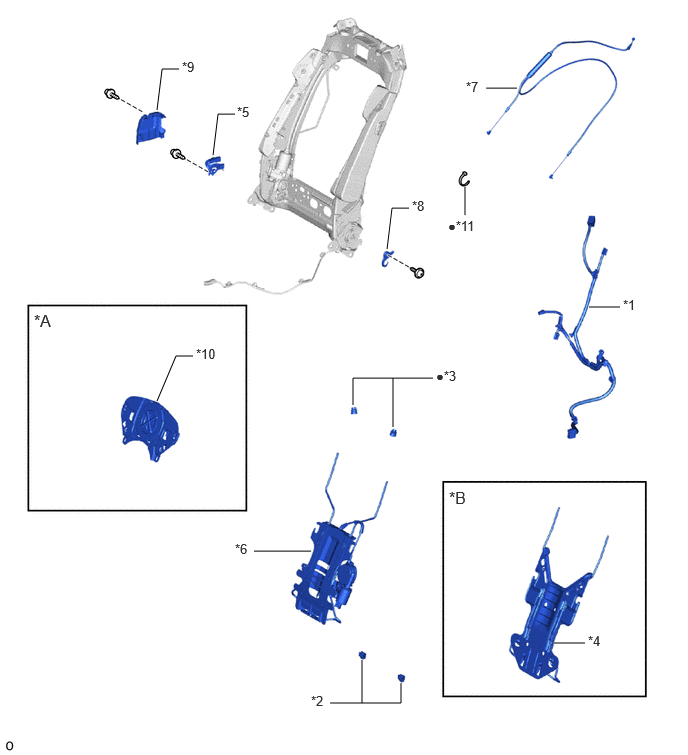

| *A | w/ Seat Heater System | *B | for Front Passenger Seat, w/o Lumbar Support |
| *1 | FRONT NO. 2 SEAT WIRE LH | *2 | FRONT SEATBACK EDGE PROTECTOR |
| *3 | FRONT SEATBACK HOOK | *4 | FRONT SEATBACK SPRING SUB-ASSEMBLY RH |
| *5 | LH SEAT FRONT INNER SEATBACK EDGE PROTECTOR | *6 | LUMBAR SUPPORT ADJUSTER ASSEMBLY LH |
| *7 | RECLINING ADJUSTER EQUALIZING CABLE ASSEMBLY LH | *8 | RECLINING COVER PROTECTOR LH |
| *9 | SEAT RECLINING ADJUSTER INSIDE COVER LH | *10 | SEATBACK CLIMATE CONTROL BLOWER LH |
| *11 | CABLE TIE | - | - |
| • | Non-reusable part | - | - |

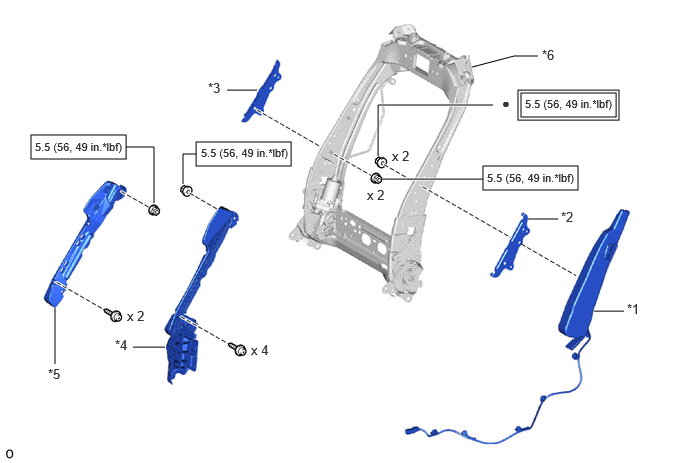

Fig 10: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (10 Of 13)
| *1 | FRONT SEAT AIRBAG ASSEMBLY LH | *2 | FRONT SEAT SIDE SUPPORT BRACKET LH |
| *3 | FRONT SEATBACK SUPPORT BRACKET RH | *4 | FRONT SEATBACK SUPPORT LH |
| *5 | FRONT SEATBACK SUPPORT RH | *6 | FRONT SEATBACK FRAME SUB-ASSEMBLY LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

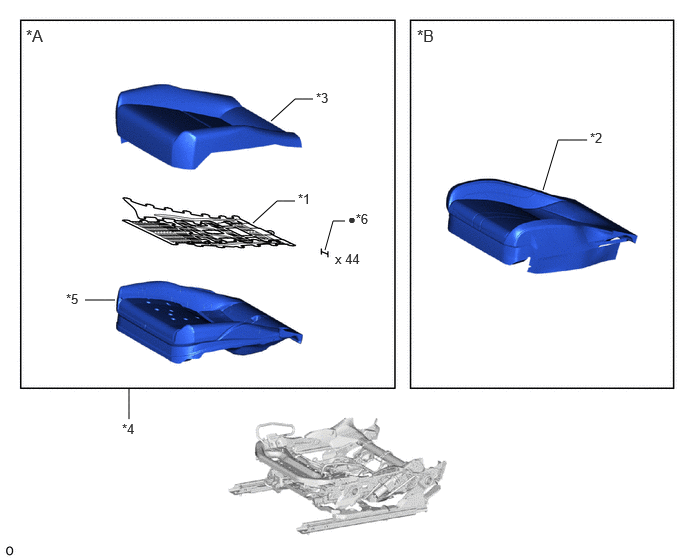

| *A | for Standard Seat Type | *B | for Sports Seat Type |
| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY LH | *2 | FRONT SEAT CUSHION PAD WITH COVER LH |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *4 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION PAD | *6 | TACK PIN |
| • | Non-reusable part | - | - |

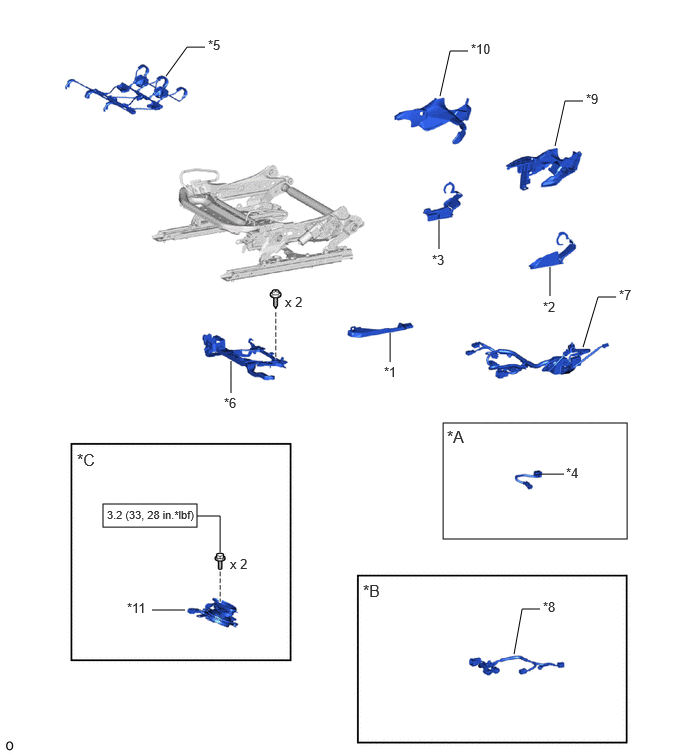

Fig 12: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (12 Of 13)
| *A | for Driver Seat | *B | for Front Passenger Seat |
| *C | w/ Seat Heater System | - | - |
| *1 | FRONT LOWER SEAT CUSHION SHIELD | *2 | FRONT LOWER SEAT CUSHION SHIELD LH |
| *3 | FRONT LOWER SEAT CUSHION SHIELD LH | *4 | FRONT NO. 2 SEAT WIRE LH |
| *5 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH | *6 | FRONT SEAT CUSHION WIRE HARNESS HOLDER LH |
| *7 | FRONT SEAT WIRE LH | *8 | FRONT SEAT WIRE RH |
| *9 | RECLINING ADJUSTER INSIDE COVER LH | *10 | RECLINING ADJUSTER INSIDE COVER LH |
| *11 | SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

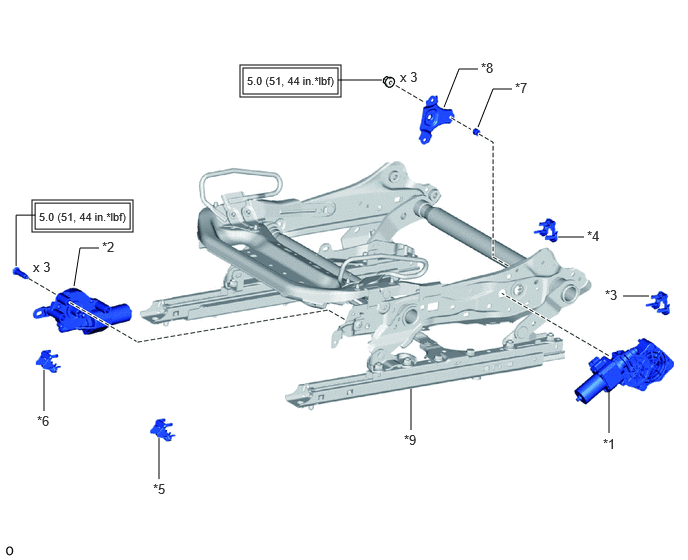

Fig 13: Front Seat Assembly Replacement Components With Torque Specifications [03/2017 - 04/2020] (13 Of 13)
| *1 | POWER SEAT LIFTER MOTOR ASSEMBLY LH | *2 | POWER SEAT TILT MOTOR ASSEMBLY LH |
| *3 | UPPER NO. 3 SEAT TRACK COVER | *4 | UPPER NO. 4 SEAT TRACK COVER |
| *5 | UPPER SEAT TRACK RAIL COVER LH | *6 | UPPER SEAT TRACK RAIL COVER RH |
| *7 | SPACER | *8 | PLATE |
| *9 | FRONT SEAT ADJUSTER ASSEMBLY LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
