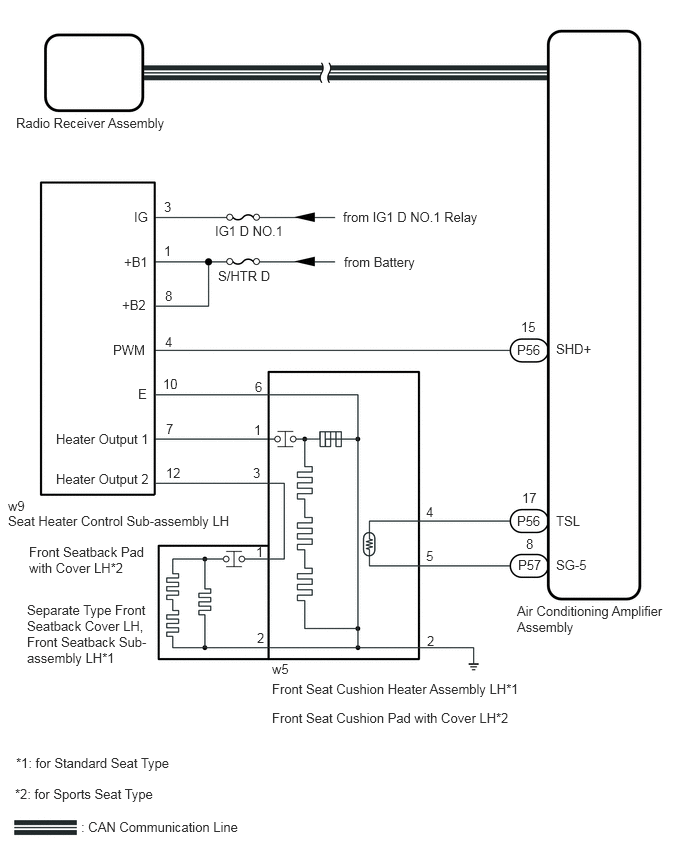

Seat Heater for Front Left Seat does not Operate [03/2017 - ]: Wiring Diagram

GTY827052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
