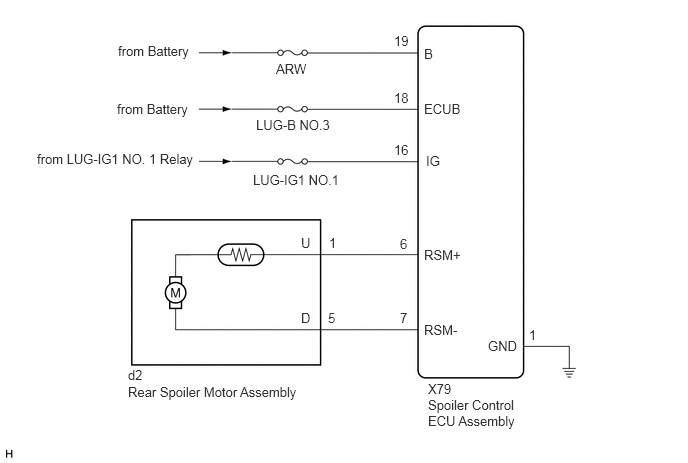

Both Manual and Automatic Operation of Active Rear Wing does not Operate [03/2017 - ]: Wiring Diagram

GTY799890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
