Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [05/2023 - ]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 12

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PRECAUTION [05/2023 - ]

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE CONSOLE PLATE

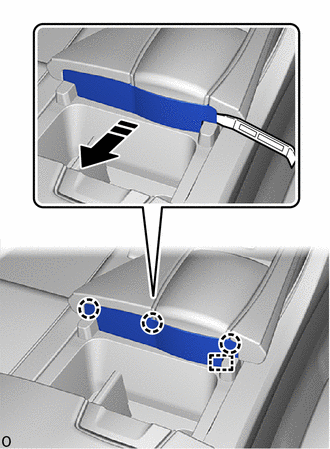

    1. Using a moulding remover A, detech the claw and guide and remove the console plate as shown in the illustration.
      GTY1241689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY
    1. Remove the screw.
      GTY1242404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

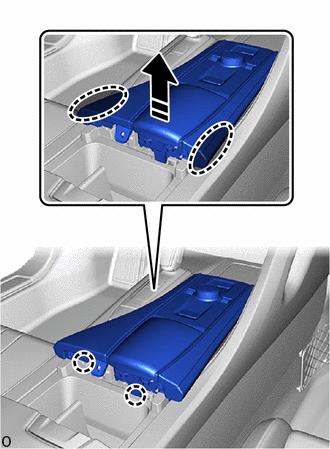

    2. Hold the area shown in the illustration using both hands and detach the claw.
      GTY1241880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    3. Hold the area shown in the illustration using both hands and detach the claw in the direction of the arrow shown in the illustration.
      GTY1242104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

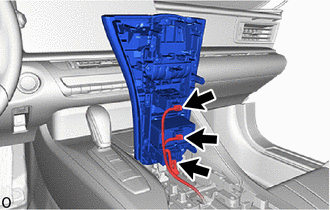

    4. Disconnect the 3 connectors and remove the radio remote tuning switch assembly.
      GTY1242407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PATTERN SELECT SWITCH

    Refer to PROCEDURE - Step 3

  7. REMOVE REFRESHING SEAT SWITCH

    Refer to PROCEDURE - Step 3

  8. REMOVE SWITCH AND VOLUME SET
    1. Remove the 4 screws.
      GTY1242927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the radio setting parts set.
  9. REMOVE REAR CONSOLE BOX POCKET

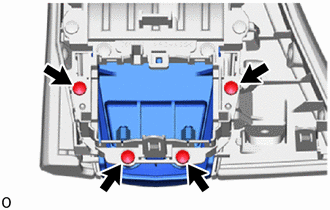

    1. Remove the 4 screws.
      GTY1242414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

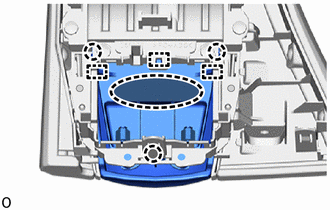

    2. While pressing the area shown in the figure with your finger, detach the claw and guide and remove the rear console box pocketl.
      GTY1242717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Press with finger here
  10. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  11. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

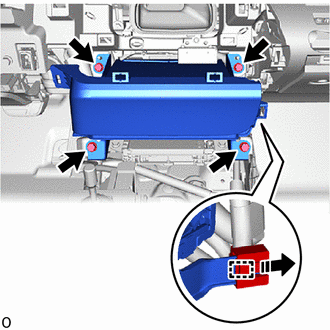

    1. Remove the 4 bolts.
      GTY1242147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Pull out the radio receiver assembly with bracket.
    3. Detach the clamp as indicated by the arrows in the shown in the illustration.
    4. Disconnect each connector and remove the radio receiver assembly with bracket.
  12. REMOVE LOWER INSTRUMENT COVER
    1. Remove the 2 screws.
      GTY1242436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and guide and remove the lower instrument cover.
  13. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket.
      GTY1242433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 RADIO BRACKET

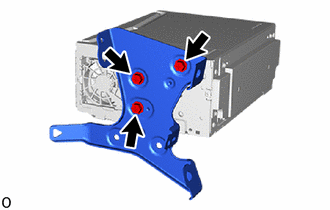

    1. Remove the 3 screws and No. 2 radio bracket.
      GTY1242933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIO RECEIVER ASSEMBLY
