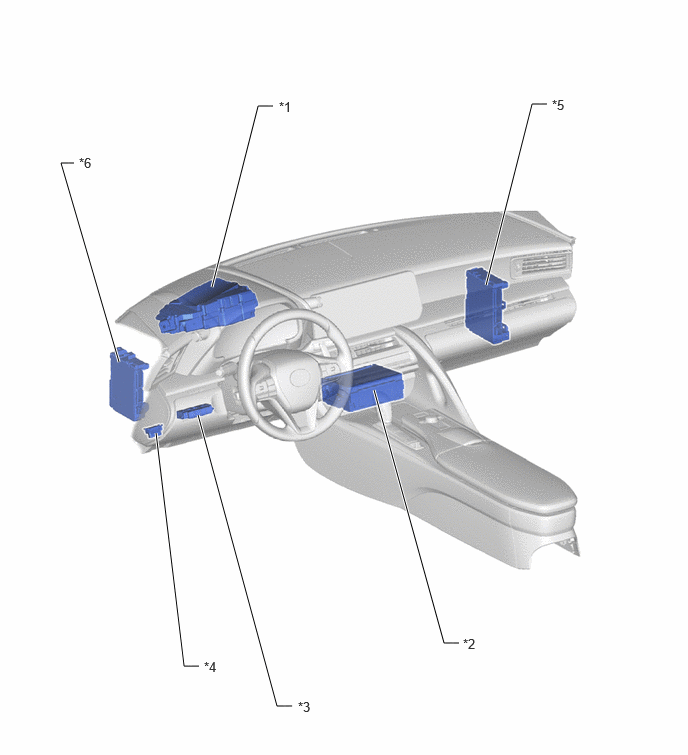

Parts Location [05/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	METER MIRROR SUB-ASSEMBLY	*2	RADIO RECEIVER ASSEMBLY
*3	NO. 3 COMBINATION SWITCH ASSEMBLY (HEADUP DISPLAY SWITCH)	*4	DLC3
*5	JUNCTION BLOCK ASSEMBLY RH - MPX-B P NO. 1 FUSE	*6	JUNCTION BLOCK ASSEMBLY LH - IG1 D NO. 1 FUSE
