Parts Location [03/2017 - 05/2023]: Illustration

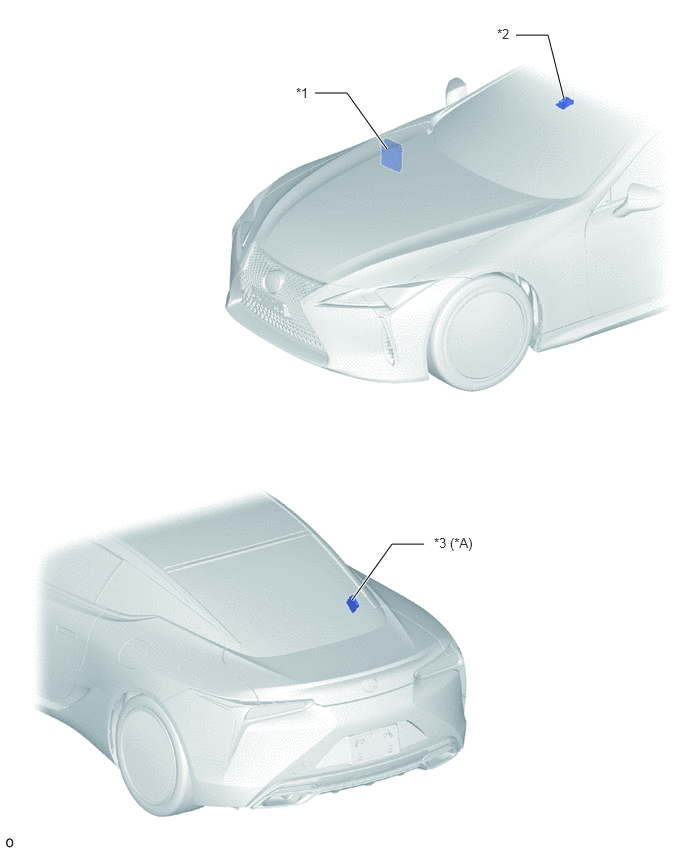

| *A | w/ Intuitive Parking Assist System | - | - |
| *1 | ECM | *2 | FORWARD RECOGNITION CAMERA |
| *3 | CLEARANCE WARNING ECU ASSEMBLY | - | - |

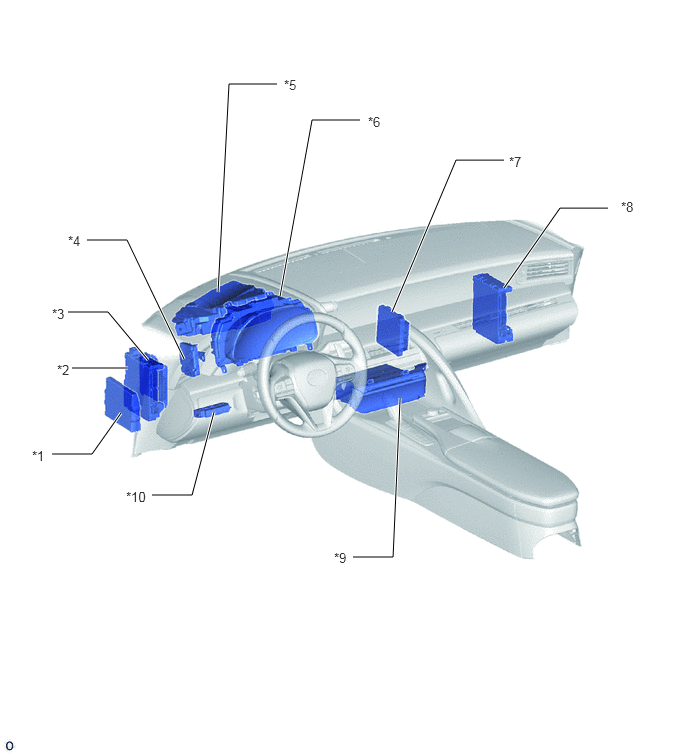

| *1 | SKID CONTROL ECU ASSEMBLY | *2 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY - IG1 D NO. 1 FUSE |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | METER MIRROR SUB-ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | SHIFT CONTROL ECU | *8 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - MPX-B P NO. 1 FUSE |
| *9 | RADIO RECEIVER ASSEMBLY | *10 | NO. 3 COMBINATION SWITCH ASSEMBLY (HEADUP DISPLAY SWITCH) |
