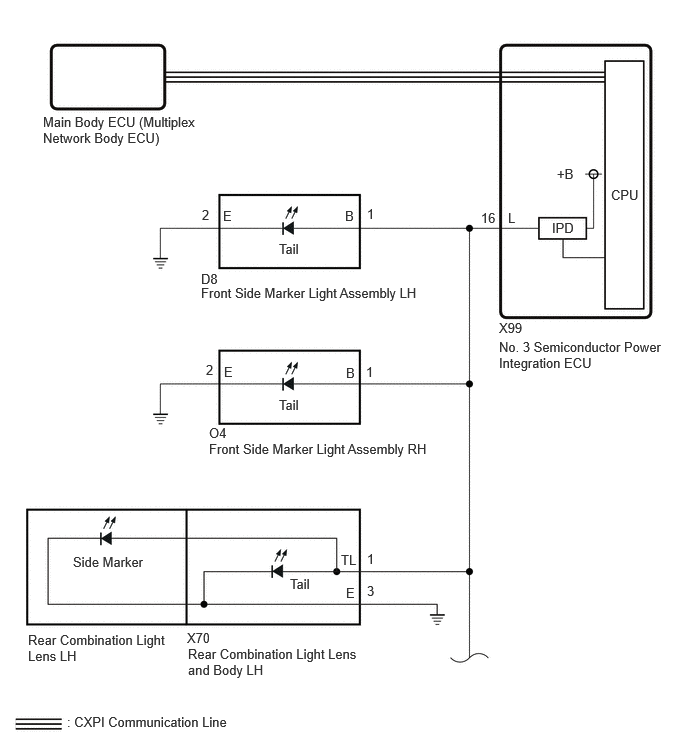

Taillight Circuit [05/2023 - ]: Wiring Diagram

GTY1242828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY796181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
