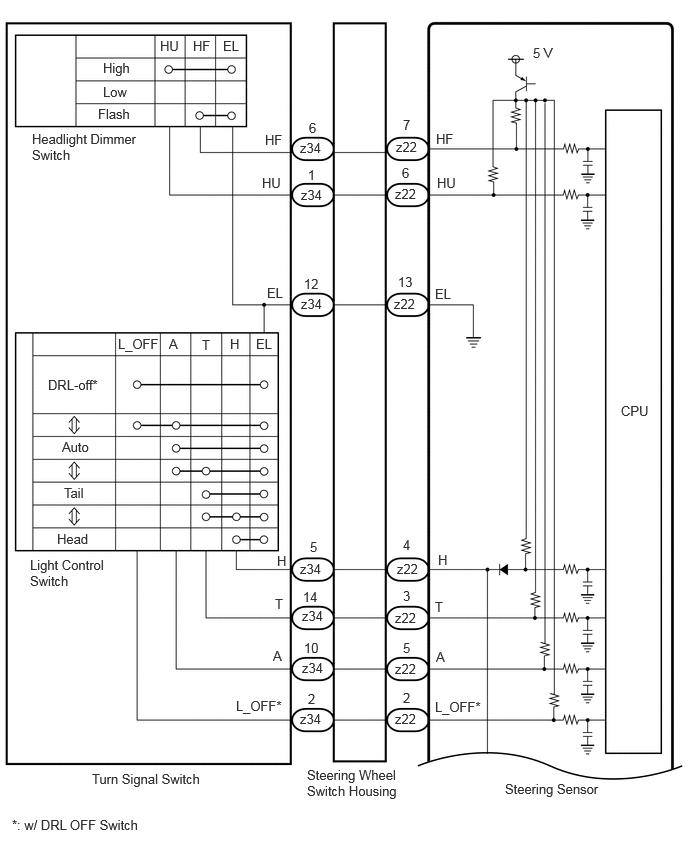

Headlight Dimmer Switch Circuit [04/2020 - ]: Wiring Diagram

GTY959622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY776322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
