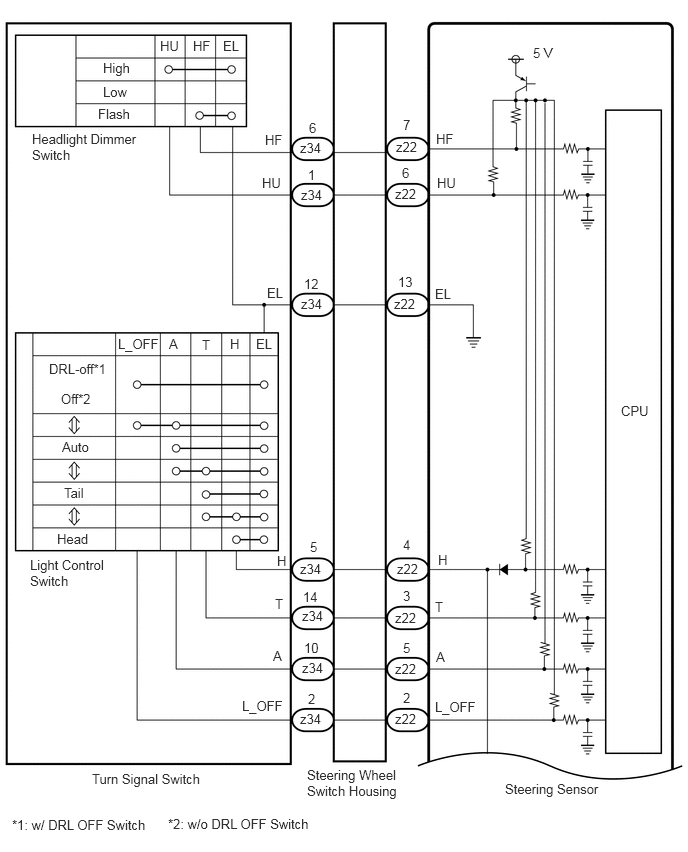

Headlight Dimmer Switch Circuit [03/2017 - 04/2020]: Wiring Diagram

GTY787971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY776322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
