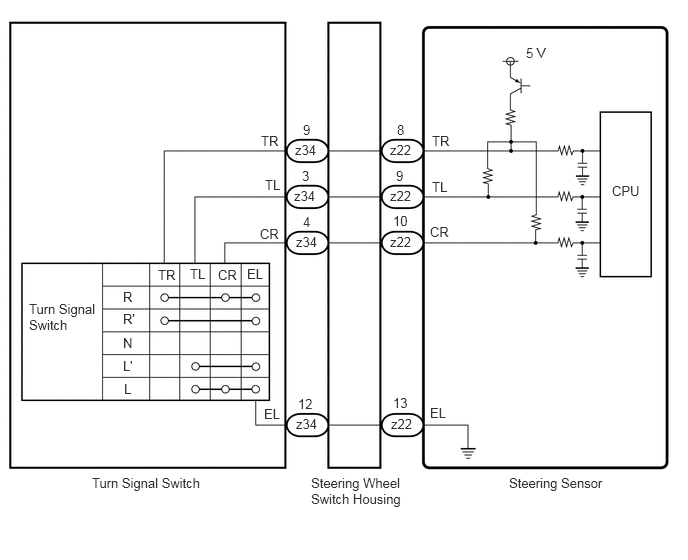

Turn Signal Switch Circuit [03/2017 - ]: Wiring Diagram

GTY805321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
