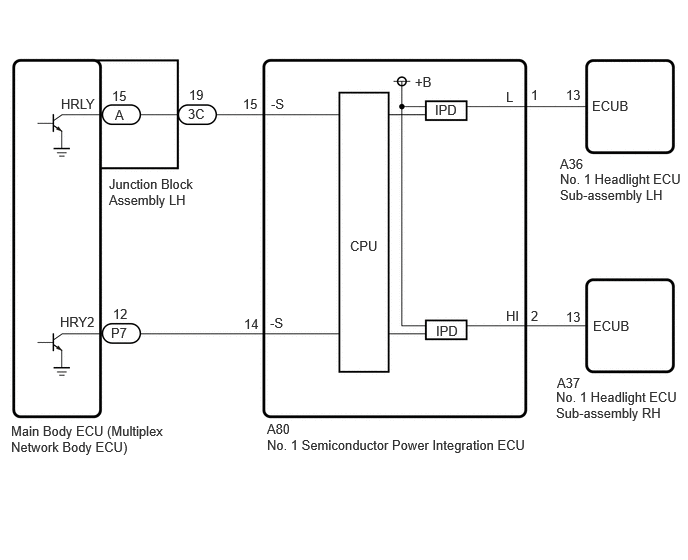

DTC B242F: Open in B Power Line [05/2023 - ]: Wiring Diagram

GTY1241930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
