DTC B242F: Open in B Power Line [03/2017 - 05/2023]: Procedure

  1. CHECK FOR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 05/2023]

      Body Electrical > HL AutoLeveling > Clear DTCs

      Body Electrical > HL AutoLeveling (Sub) > Clear DTCs

    2. Turn the engine switch on (IG) and wait for at least 10 seconds or more.
    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 05/2023]

      Body Electrical > HL AutoLeveling > Trouble Codes

      Body Electrical > HL AutoLeveling (Sub) > Trouble Codes

      OK

      DTC B242F is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from No. 1 headlight ECU sub-assembly LH) B
      NG (DTC output from No. 1 headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2017 - 04/2020]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [04/2020 - 05/2023]

    Result:

    C

    See step  12

    Result:

    B

    See step  2

  2. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Status of Headlight ECU LH Fuse No. 1 headlight ECU sub-assembly LH fuse condition Connect or Disconnect Connect: Fuse not shut off
      Disconnect: Fuse shut off      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Status of Headlight ECU LH Fuse

      OK

      The Data List value displays "Connect".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  3

  3. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Headlight ECU LH Input Signal No. 1 headlight ECU sub-assembly LH input OFF or ON OFF: No. 1 headlight ECU sub-assembly LH is not input
      ON: No. 1 headlight ECU sub-assembly LH is input      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Headlight ECU LH Input Signal

      OK

      The Data List value displays "ON".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  4

  4. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Headlight ECU LH Output Signal No. 1 headlight ECU sub-assembly LH output OFF or ON OFF: No. 1 headlight ECU sub-assembly LH has no power supply
      ON: No. 1 headlight ECU sub-assembly LH has power supply      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Headlight ECU LH Output Signal

      OK

      The Data List value displays "ON".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - BATTERY)
    1. Disconnect the No. 1 headlight ECU sub-assembly LH connector.
      GTY794062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly LH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A36-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    See step  9

  6. CHECK NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH
    1. Disconnect the A36 No. 1 headlight ECU sub-assembly LH connector.
    2. Turn the engine switch off and wait for at least 15 seconds.
    3. Turn the engine switch on (IG).
    4. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Status of Headlight ECU LH Fuse No. 1 headlight ECU sub-assembly LH fuse condition Connect or Disconnect Connect: Fuse not shut off
      Disconnect: Fuse shut off      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Status of Headlight ECU LH Fuse

      OK

      The Data List value displays "Connect".

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    See step  10

  7. CHECK NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU
    1. Disconnect the driver side junction block assembly connector.
      GTY798863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Driver Side Junction Block Assembly)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3C-19 - Body ground Always 6 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  8

  8. CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY
    1. Remove the driver side junction block assembly.

      Refer to REMOVAL [03/2017 - 05/2023]

      GTY806028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Driver Side Junction Block Assembly)      		 - -
    2. Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

      Refer to REMOVAL [03/2017 - 05/2023]

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3C-19 - A-15 (HRLY) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [03/2017 - 05/2023]

  9. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the A36 No. 1 headlight ECU sub-assembly LH connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A80-1 (L) - A36-13 (ECUB) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  10. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the A36 No. 1 headlight ECU sub-assembly LH connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A80-1 (L) or A36-13 (ECUB) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  11. CHECK HARNESS AND CONNECTOR (DRIVER SIDE JUNCTION BLOCK ASSEMBLY - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the 3C driver side junction block assembly connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3C-19 - A80-15 (-S) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  12. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Status of Headlight ECU RH Fuse No. 1 headlight ECU sub-assembly RH fuse condition Connect or Disconnect Connect: Fuse not shut off
      Disconnect: Fuse shut off      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Status of Headlight ECU RH Fuse

      OK

      The Data List value displays "Connect".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  13

  13. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Headlight ECU RH Input Signal No. 1 headlight ECU sub-assembly RH input OFF or ON OFF: No. 1 headlight ECU sub-assembly RH is not input
      ON: No. 1 headlight ECU sub-assembly RH is input      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Headlight ECU RH Input Signal

      OK

      The Data List value displays "ON".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  14

  14. READ VALUE USING TECHSTREAM
    1. Turn the engine switch on (IG).
    2. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Headlight ECU RH Output Signal No. 1 headlight ECU sub-assembly RH output OFF or ON OFF: No. 1 headlight ECU sub-assembly RH has no power supply
      ON: No. 1 headlight ECU sub-assembly RH has power supply      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Headlight ECU RH Output Signal

      OK

      The Data List value displays "ON".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    OK

    See step  15

  15. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - BATTERY)
    1. Disconnect the No. 1 headlight ECU sub-assembly RH connector.

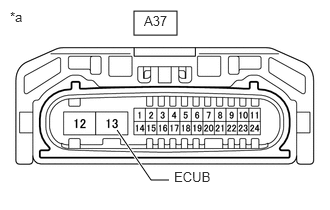

      GTY831420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly RH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A37-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    See step  18

  16. CHECK NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH
    1. Disconnect the A37 No. 1 headlight ECU sub-assembly RH connector.
    2. Turn the engine switch off and wait for at least 15 seconds.
    3. Turn the engine switch on (IG).
    4. Using the Techstream, read the Data List.

      Refer to DATA LIST / ACTIVE TEST [03/2017 - 04/2020] , or refer to DATA LIST / ACTIVE TEST [04/2020 - 05/2023]

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Status of Headlight ECU RH Fuse No. 1 headlight ECU sub-assembly RH fuse condition Connect or Disconnect Connect: Fuse not shut off
      Disconnect: Fuse shut off      		 -

      Body Electrical > Power Integration No. 1 > Data List

      Tester Display
      Status of Headlight ECU RH Fuse

      OK

      The Data List value displays "Connect".

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    See step  19

  17. CHECK NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU
    1. Disconnect the main body ECU (multiplex network body ECU) connector.
      GTY823041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Main Body ECU [Multiplex Network Body ECU])
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      P7-12 (HRY2) - Body ground Always 6 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    See step  20

  18. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the A37 No. 1 headlight ECU sub-assembly RH connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A80-2 (HI) - A37-13 (ECUB) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  19. CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the A37 No. 1 headlight ECU sub-assembly RH connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A80-2 (HI) or A37-13 (ECUB) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  20. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU] - NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU)
    1. Disconnect the P7 main body ECU (multiplex network body ECU) connector.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the A80 No. 1 semiconductor power integration ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P7-12 (HRY2) - A80-14 (-S) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
