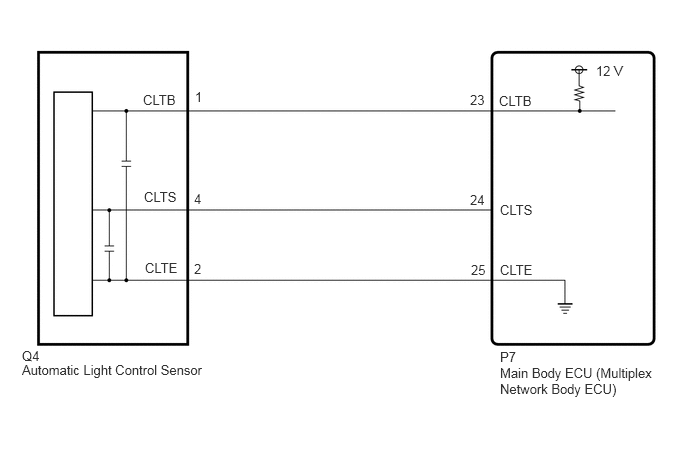

DTC B1244: Light Sensor Circuit Malfunction [03/2017 - ]: Wiring Diagram

GTY780925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
