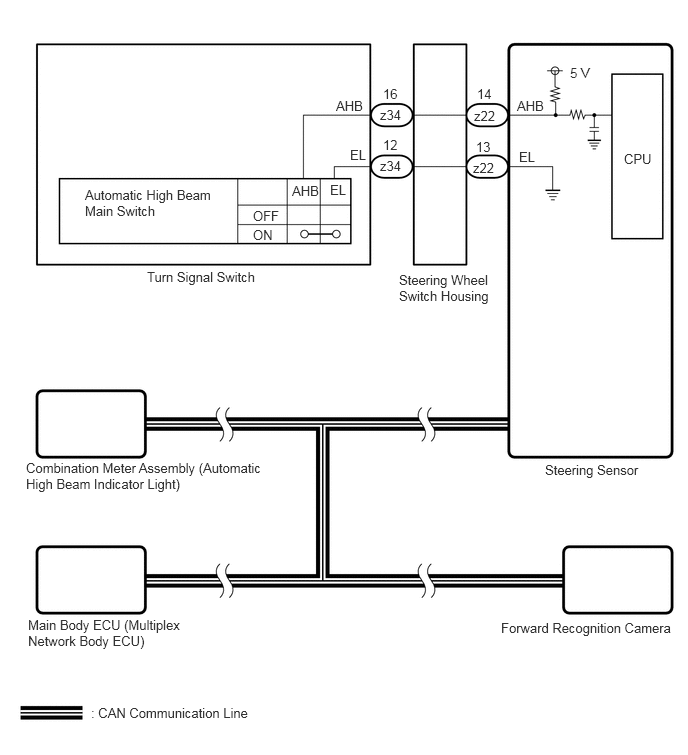

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [03/2017 - 04/2020]: Wiring Diagram

GTY789537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
