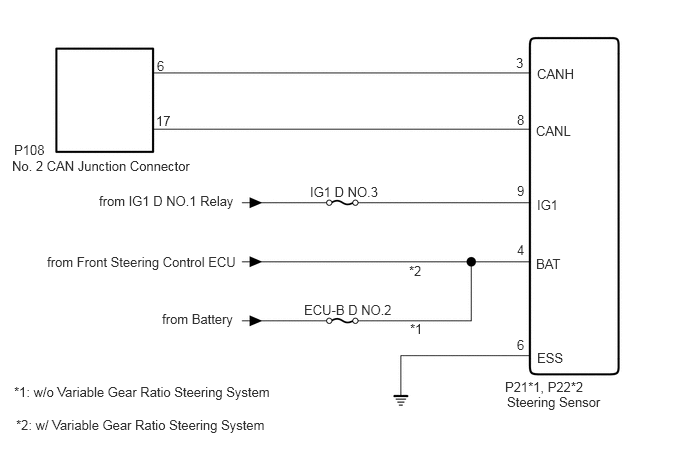

Steering Angle Sensor Communication Stop Mode [03/2017 - 05/2023]: Wiring Diagram

GTY828418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
