Skid Control ECU Communication Stop Mode [03/2017 - 05/2023]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the skid control ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

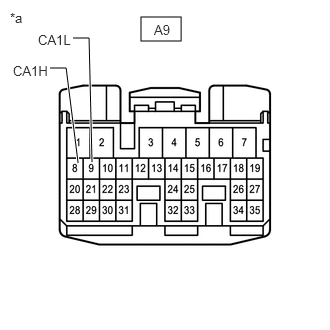

   *a	Front view of wire harness connector (to Skid Control ECU Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A9-8 (CA1H) - A9-9 (CA1L)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the skid control ECU assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

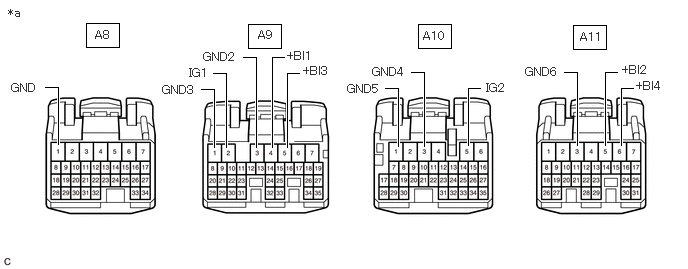

   Front view of wire harness connector (to Skid Control ECU Assembly)

   -

   -

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A8-1 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   A9-3 (GND2) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   A9-1 (GND3) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   A10-3 (GND4) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   A10-1 (GND5) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   A11-3 (GND6) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A9-2 (IG1) - Body ground	Engine switch on (IG)	11 to 14 V
   	Engine switch off	Below 1 V
   A10-5 (IG2) - Body ground	Engine switch on (IG)	11 to 14 V
   	Engine switch off	Below 1 V
   A9-4 (+BI1) - Body ground	Always	11 to 14 V
   A11-5 (+BI2) - Body ground	Always	11 to 14 V
   A9-5 (+BI3) - Body ground	Always	11 to 14 V
   A11-6 (+BI4) - Body ground	Always	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE SKID CONTROL ECU ASSEMBLY. Refer to  REMOVAL [03/2017 - 05/2023]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
