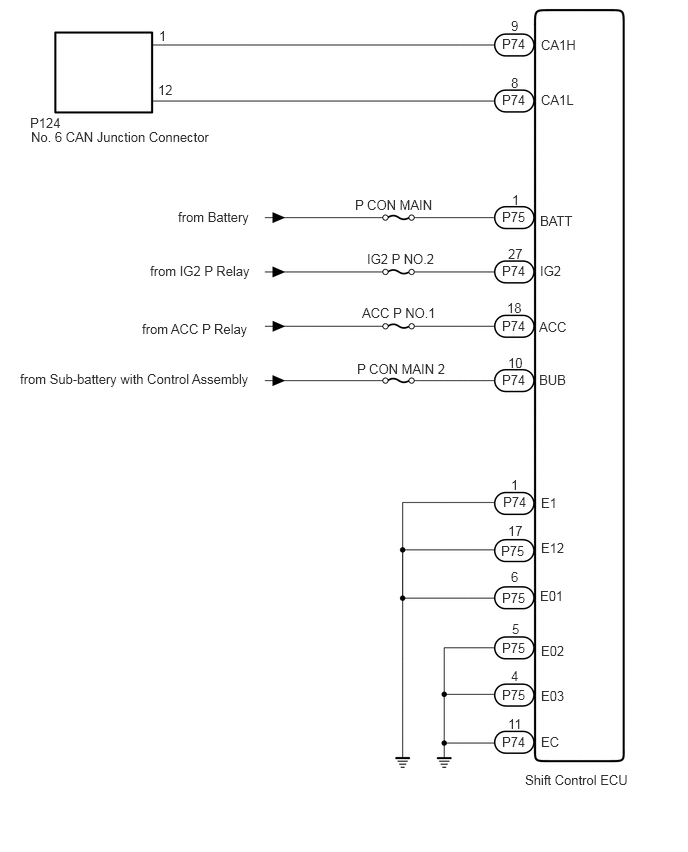

Shift Control ECU Communication Stop Mode [03/2017 - 05/2023]: Wiring Diagram

GTY795121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
