Shift Control ECU Communication Stop Mode [03/2017 - 05/2023]: Procedure
- CHECK FOR OPEN IN CAN BUS WIRE (SHIFT CONTROL ECU BRANCH WIRE)
- Disconnect the cable from the negative (-) battery terminal.NOTE:
Perform shift control ECU removal and connector disconnection procedures with the power supply from the sub-battery turned off.
Refer to PRECAUTION [03/2017 - 05/2023]
- Disconnect the shift control ECU connector.

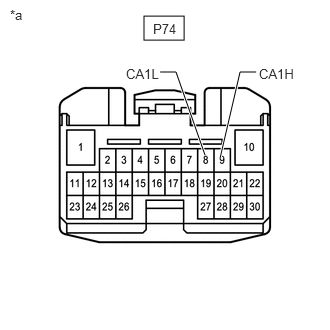

*a Front view of wire harness connector
(to Shift Control ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition P74-9 (CA1H) - P74-8 (CA1L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR
Result:
OK
See step 2
- Disconnect the cable from the negative (-) battery terminal.
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Disconnect the shift control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition P74-1 (E1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω P74-11 (EC) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω P75-4 (E03) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω P75-5 (E02) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω P75-6 (E01) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω P75-17 (E12) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω *a Front view of wire harness connector
(to Shift Control ECU) - Reconnect the cable to the negative (-) battery terminal.NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition P75-1 (BATT) - Body ground Always 8 to 15.4 V P74-10 (BUB) - Body ground 5 seconds after engine switch on (IG)* 8 to 15.4 V P74-18 (ACC) - Body ground Engine switch on (ACC) 8 to 15.4 V Engine switch off Below 1 V P74-27 (IG2) - Body ground Engine switch on (IG) 8 to 15.4 V Engine switch off Below 1 V *: Power is supplied from the sub-battery assembly with control for only 5 seconds after the engine switch is turned on (IG). Therefore, measure the voltage during that time.
Result
Result OK NG
Result:
OK
REPLACE SHIFT CONTROL ECU. Refer to REMOVAL [03/2017 - 05/2023]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
