Power Steering ECU Communication Stop Mode [05/2023 - ]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the rack and pinion power steering gear assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

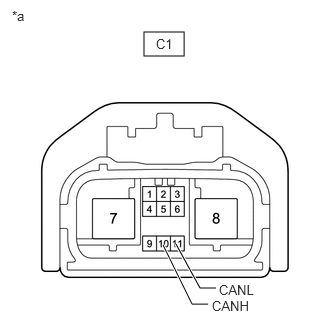

   *a	Front view of wire harness connector (to Rack and Pinion Power Steering Gear Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C1-10 (CANH) - C1-11 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C1-7 (PGND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

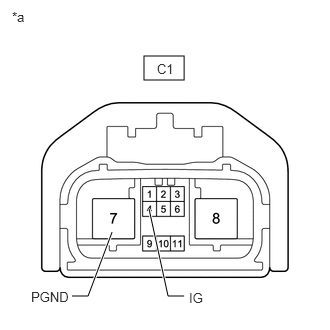

   *a	Front view of wire harness connector (to Rack and Pinion Power Steering Gear Assembly)

2. Reconnect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to WORK PROCEDURE [05/2023 - ]

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   C1-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   	Engine switch off	Below 1 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RACK AND PINION POWER STEERING GEAR ASSEMBLY. Refer to  REMOVAL [05/2023 - 09/2023]  , or refer to  REMOVAL [09/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
