Clearance Warning ECU Communication Stop Mode [03/2017 - 05/2023]: Procedure
- CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY BRANCH WIRE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the clearance warning ECU assembly connector.

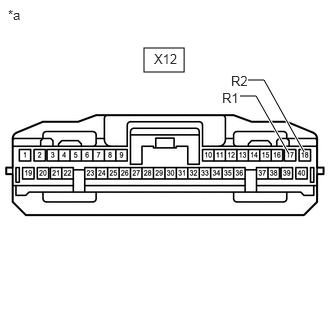

*a Front view of wire harness connector
(to Clearance Warning ECU Assembly) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition X12-17 (R1) - X12-18 (R2) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

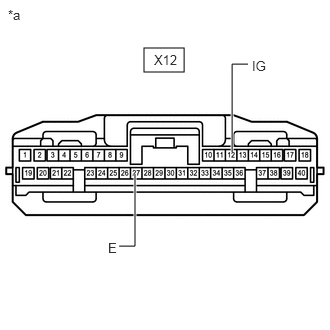

Tester Connection Condition Specified Condition X12-27 (E) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω *a Front view of wire harness connector
(to Clearance Warning ECU Assembly) - Reconnect the cable to the negative (-) battery terminal.NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition X12-12 (IG) - Body ground Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V Result
Result OK NG
Result:
OK
REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to REMOVAL [03/2017 - 05/2023]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
