Removal [05/2023 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to REMOVAL [05/2023 - ]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE INJECTOR DRIVER

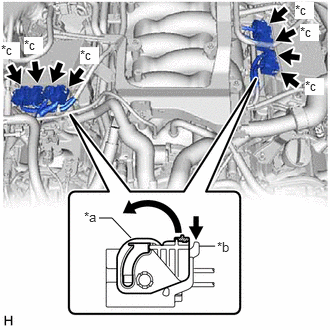

- Push the lock and move the lock lever of each connector (with lock) as shown in the illustration and disconnect the 6 connectors (with lock) from the 2 injector drivers.
*a Lock Lever *b Lock *c Connector (with Lock) - Disconnect the 2 injector driver connectors.

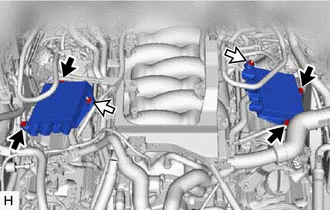

- Remove the 4 bolts, 2 nuts and No. 1 injector driver and No. 2 injector driver.
Bolt Nut NOTE:Be careful not to drop or strike the injector driver.
- Push the lock and move the lock lever of each connector (with lock) as shown in the illustration and disconnect the 6 connectors (with lock) from the 2 injector drivers.
