Removal [07/2020 - 05/2023]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [07/2020 - 05/2023]

  2. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

    Refer to REMOVAL [07/2020 - 05/2023]

  3. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 3 exhaust manifold heat insulator.
      GTY516386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STARTER ASSEMBLY

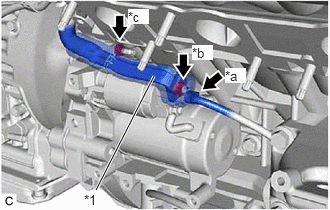

    1. Disconnect the starter assembly connector.
      GTY805092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Terminal Cover
      *a Connector
      *b Nut A
      *c Nut B
    2. Open the terminal cover.
    3. Remove the nut A to disconnect the starter wire.
    4. Remove the nut B and terminal cover.
    5. Remove the 2 bolts and starter assembly.
      GTY516383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FLYWHEEL HOUSING SIDE COVER

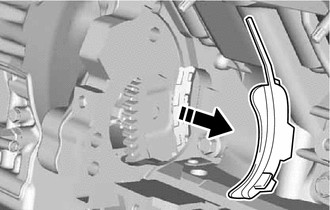

    1. Remove the flywheel housing side cover as shown in the illustration.
      GTY786109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
