Installation [07/2020 - ]: Procedure
- INSTALL ENGINE REAR OIL SEAL
- Apply MP grease to the lip of a new engine rear oil seal.

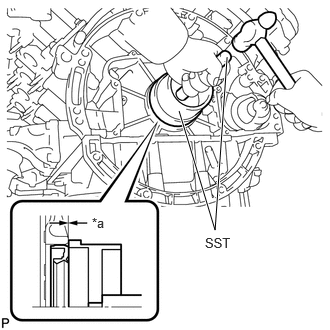

- Using SST and a hammer, tap in the engine rear oil seal.
*a Oil Seal Protrusion Height - SST: 09223-1503009950-70010
Oil Seal Protrusion Height
-1.0 to 0 mm (-0.0394 to 0 in.) (From the edge of the engine rear oil seal retainer)
NOTE:- Keep the lip free from foreign matter.
- Do not tap in the engine rear oil seal at an angle.
- Do not tap in the engine rear oil seal excessively.
- INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

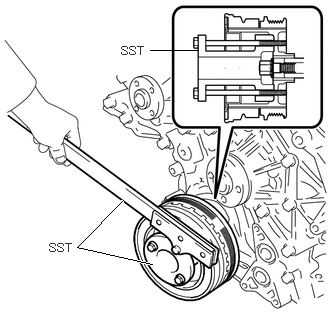

- Using SST, hold the crankshaft pulley.
- SST: 09213-38010
- 09214-00011
- SST: 09330-00021
- SST: 09213-38010
- Clean the 10 bolt holes.

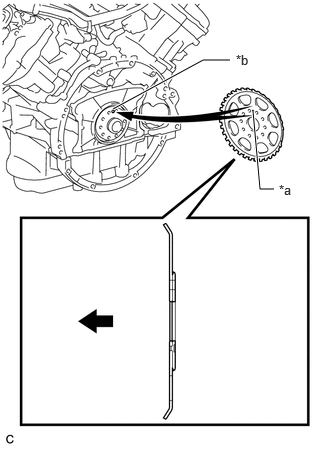

- Install the crankshaft angle sensor rotor.
*a Pin Hole *b Pin Engine Front HINT:
Align the pin hole of the crankshaft angle sensor rotor with the pin of the crankshaft.

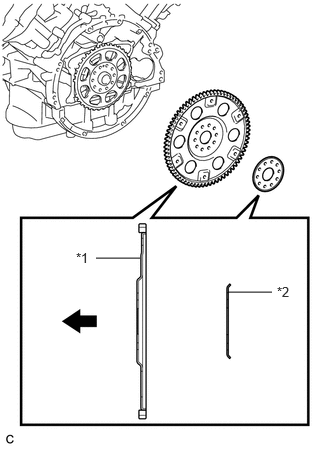

- Install the drive plate and ring gear sub-assembly and rear drive plate spacer onto the crankshaft.
*1 Drive Plate *2 Rear Drive Plate Spacer Automatic Transmission Side HINT:
As the drive plate and ring gear sub-assembly and the rear drive plate spacer are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.
- Apply a few drops of adhesive to 2 or 3 threads at the tip of each of 10 new drive plate setting hexagon bolts.
*a Adhesive Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
NOTE:- Do not reuse the drive plate setting hexagon bolts.
- To prevent contamination by foreign matter, install immediately after applying adhesive.

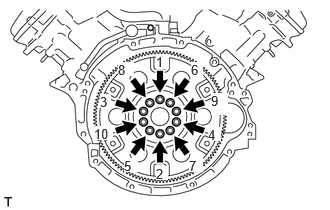

- Install and uniformly tighten the 10 drive plate setting hexagon bolts in the sequence shown in the illustration.
Torque: 29.5 N.m (301 kgf/cm, 22 ft.lbf)
NOTE:- Handle the drive plate setting hexagon bolts carefully. Do not scratch them or subject them to any shocks.
- Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.
- Mark the upside of each drive plate and ring gear sub-assembly installation bolt with paint.
- Tighten the drive plate and ring gear sub-assembly installation bolts another 90° as shown in the illustration.
- Check that the paint marks are now at 90° angle.
*a Paint Mark Up
- Using SST, hold the crankshaft pulley.
- INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
Refer to INSTALLATION [07/2020 - ]
- INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 9 [07/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - ]
