Removal [07/2020 - ]: Procedure

  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  2. REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 6 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 6 [05/2023 - ]

  3. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 7 [05/2023 - ]

  4. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws.
      GTY802669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

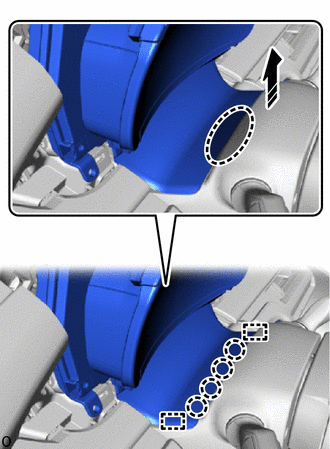

    2. GTY832743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      Detach the claw and guide as shown in the illustration.

    3. GTY802653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the wire harness clamp and disconnect the 2 connectors.

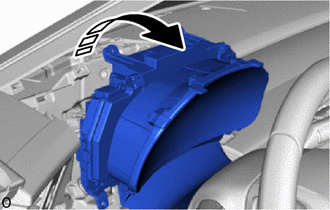

    4. GTY793995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Remove the combination meter assembly as shown in the illustration.

  5. REMOVE METER HOOD SPACER
    1. GTY810073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the claw and remove the meter hood spacer.
