Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE RADIATOR SUPPORT TO FRAME SEAL RH

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

    Refer to PROCEDURE - Step 2

  3. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly.
      GTY949342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Turn the pin hold clip 90° and remove the 3 pin hold clips.
      GTY952506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Pin Hold Clip
      Rotation Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Detach the claw.
      GTY951678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the front side bumper retainer LH.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY952516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Screw
      Pin - -
      1. Fold back a part of edge of the front fender liner LH, remove the pin.
        NOTE:

        When folding back the edge of the front fender liner LH, do not pull too hard.

      2. Remove the screw.
      3. Remove the claw and front bumper side retainer LH as shown in the illustration.
    5. Remove the 8 screws.
      GTY951690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 bolts and 2 clips.
      GTY952778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Clip
    7. Detach the clip and separate the radiator grill protector.
      GTY835604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Separate Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    8. Disconnect the connector of the millimeter wave radar sensor assembly.
      GTY953463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY951427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

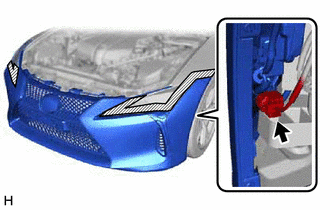

    10. Fold back a part of edge of the front fender liner LH, disconnect the connector of the front turn signal light assembly LH.
      GTY949353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When folding back the edge of the front fender liner LH, do not pull too hard.

      HINT:

      Use the same procedure for the RH side and LH side.

    11. Detach the claw and remove the front bumper assembly as shown in the illustration.
      GTY952898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
