Removal [07/2020 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  2. REMOVE NO. 1 ROOF SILENCER PAD

    Refer to PROCEDURE - Step 1

  3. REMOVE VISOR ASSEMBLY LH
    1. Remove each tape.

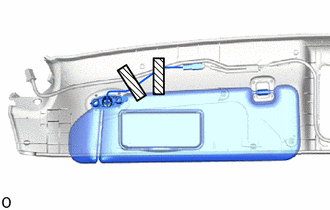

      GTY963327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Tape
    2. Disconnect the connector.

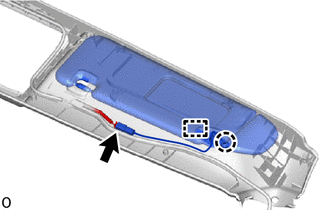

      GTY963657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw and guide and remove the visor assembly LH.
