Removal [07/2020 - 05/2023]: Procedure

PRECAUTION

WARNING:

Be sure to read Precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [07/2020 - 05/2023]

NOTE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Refer to INITIALIZATION [07/2020 - 05/2023]

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Refer to REMOVAL [07/2020 - 05/2023]

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
Refer to PRECAUTION [07/2020 - 05/2023]
If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2020 - 05/2023]

REMOVE COMBINATION METER ASSEMBLY
Refer to REMOVAL [07/2020 - ]
REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to REMOVAL [07/2020 - 05/2023]
REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [07/2020 - 05/2023]
REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 26 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 05/2023]
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 30 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 05/2023]

REMOVE MULTI-DISPLAY

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

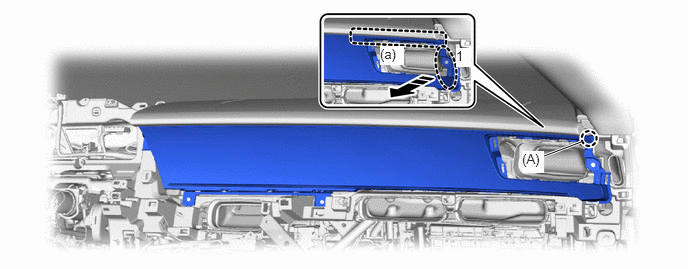

Hold area 1 as shown in the illustration and detach claw A while moving it towards the rear of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (a) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

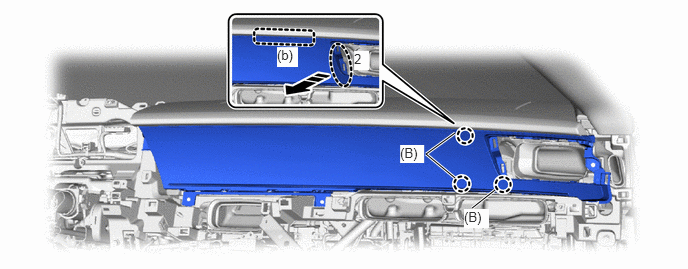

Insert your hand from the area where the register is installed, hold area 2 as shown in the illustration and detach claw B while moving it towards the rear of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (b) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

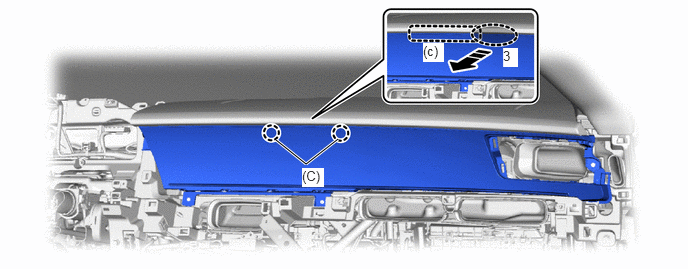

Insert your hand through the gap between the instrument panel, hold area 3 as shown in the illustration and detach claw C while moving it towards the rear of the vehicle.

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (c) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

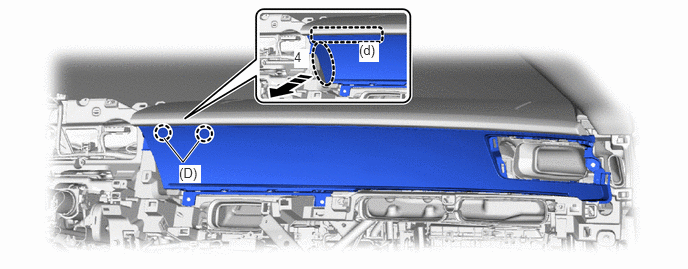

Hold area 4 as shown in the illustration and detach claw D from the instrument panel while pulling it towards the rear of the vehicle.

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (d) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

Detach the clamp and disconnect the 5 connectors.
