Removal [05/2023 - ]: Procedure

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2
REMOVE COMBINATION METER ASSEMBLY
Refer to REMOVAL [07/2020 - ]

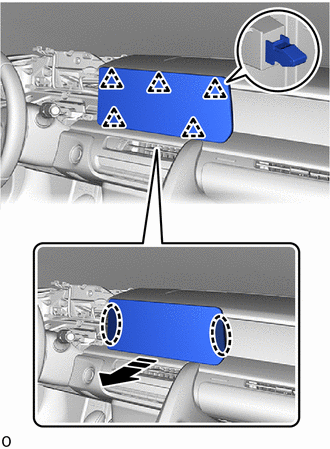

REMOVE INSTRUMENT PANEL SAFETY PAD COVER

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and remove the instrument panel safety pad cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

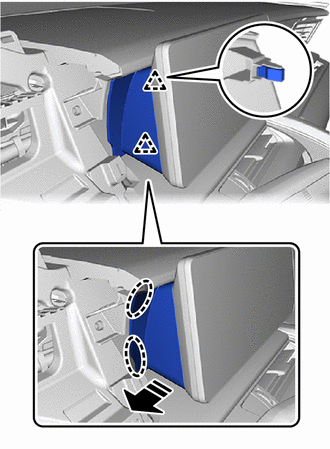

REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD COVER

Using moulding remover A, detach the clip as shown in the illustration and remove the No. 2 Instrument panel safety pad cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Insert Moulding Remover A Here
	Remove in this Direction

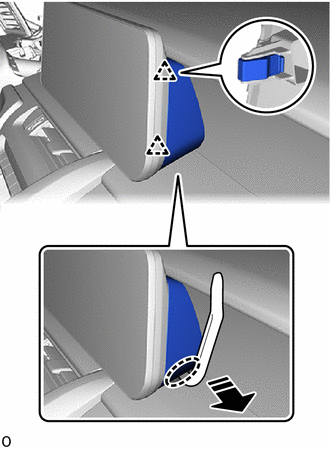

REMOVE MULTI-DISPLAY WITH BRACKET

Remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and remove the multi-display with bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

Detach the clamp and disconnect the 4 connectors, and remove the multi-display with bracket.

REMOVE MULTI-DISPLAY CONTROLLER BRACKET A

Remove the 4 screws and multi-display controller bracket A.

REMOVE MULTI-DISPLAY
