Removal [05/2023 - ]: Procedure

REMOVE REAR SEAT ASSEMBLY
Refer to REMOVAL [07/2020 - ]

REMOVE REAR SPEAKER ASSEMBLY (for Headrest)

HINT:

Use the same procedure for the opposite side.

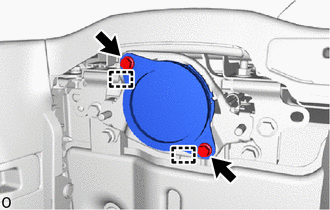

Remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the guide and remove the rear speaker assembly.

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR SEAT SIDE GARNISH (for Seatback)

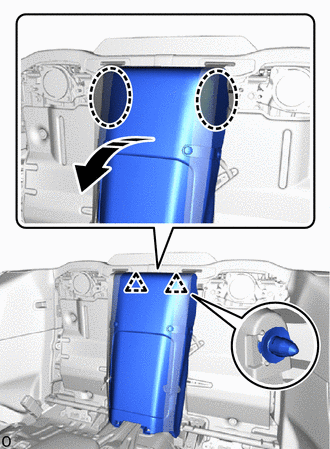

Insert your hand in the gap between the seatback and vehicle as shown in the illustration and while pulling toward the front of the vehicle, detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

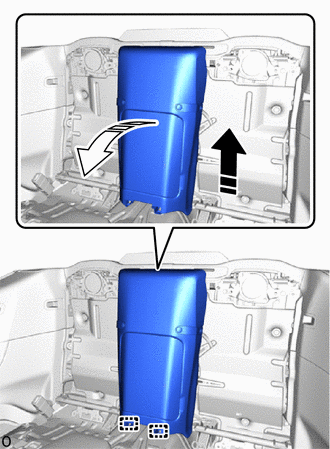

Move the rear seat side garnish in the direction of the arrow shown in the illustration and remove the insertion point from the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

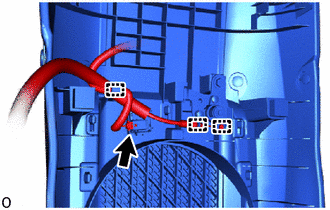

Detach the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector and remove the rear seat side garnish.

REMOVE NO. 3 SPEAKER ASSEMBLY WITH BOX (for Seatback)

for 12 Speakers:

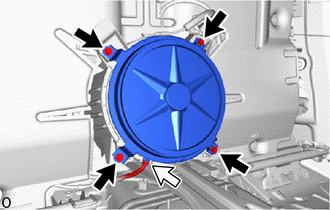

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Connector

Disconnect the connector and remove the No. 3 speaker assembly with box.

for 13 Speakers:

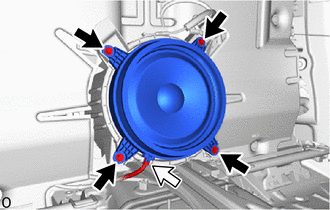

Remove the 4 bolts.

	Bolt
	Connector

Disconnect the connector and remove the No. 3 speaker assembly with box.

REMOVE ROOM PARTITION PANEL INSULATOR (for Seatback)

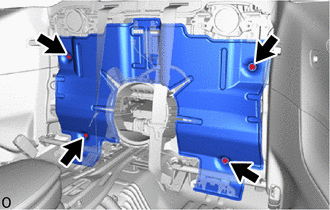

Remove the 4 clips and room partition panel insulator.

REMOVE NO. 1 SPEAKER MOUNTING BRACKET (for Seatback)

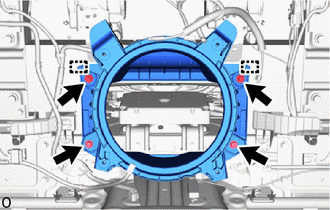

Remove the 4 bolts.

Detach the guide and remove the No. 1 speaker mounting bracket.
