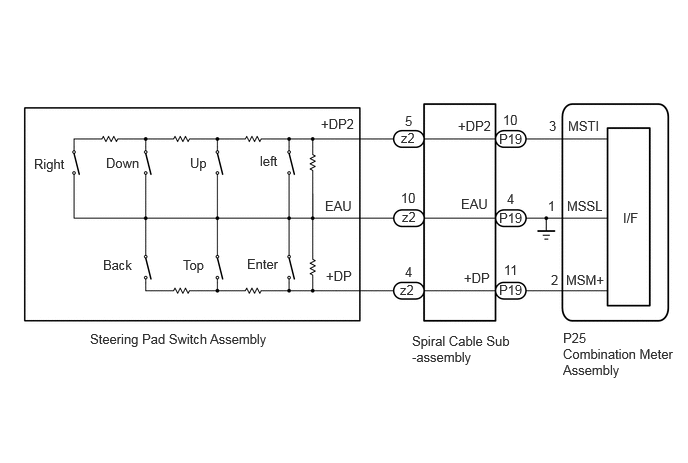

Steering Pad Switch Circuit [07/2020 - 05/2023]: Wiring Diagram

GTY959789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
