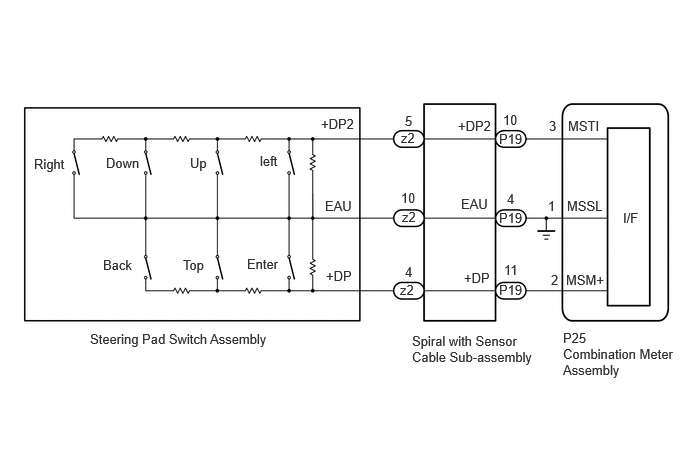

Steering Pad Switch Circuit [05/2023 - ]: Wiring Diagram

GTY1243245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
