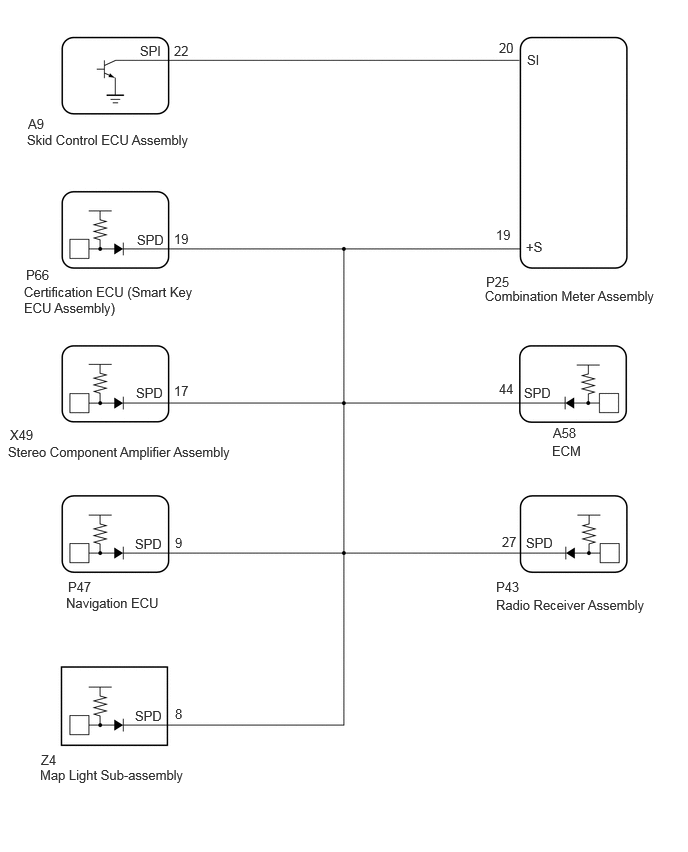

Speed Signal Circuit [07/2020 - 05/2023]: Wiring Diagram

GTY959775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
