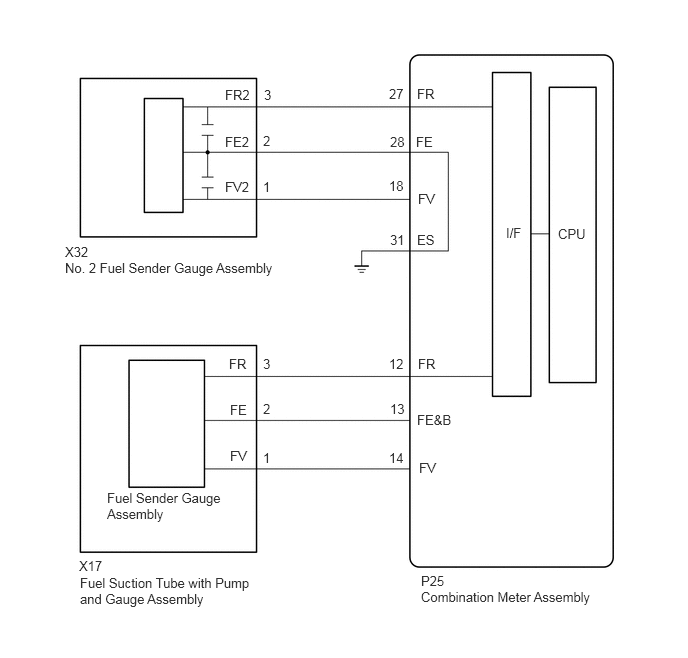

Fuel Receiver Gauge Display Malfunction [07/2020 - 05/2023]: Wiring Diagram

GTY779690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
