Entire Combination Meter does not Operate [07/2020 - ]: Procedure

1. Disconnect the combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

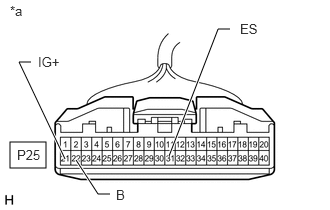

   *a	Front view of wire harness connector (to Combination Meter Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P25-31 (ES) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   P25-21 (IG+) - Body ground	Engine switch off	Below 1 V
   	Engine switch on (IG)	11 to 14 V
   P25-22 (B) - Body ground	Always	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [07/2020 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
