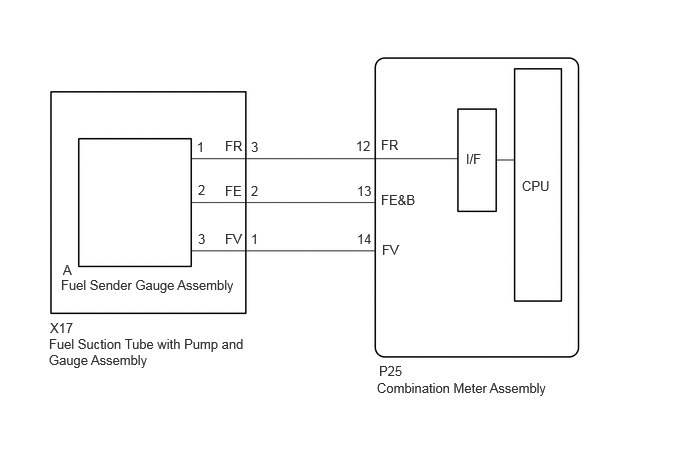

DTC B1500: Fuel Sender Open Detected [07/2020 - 05/2023]: Wiring Diagram

GTY959981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
