Components [07/2020 - ]

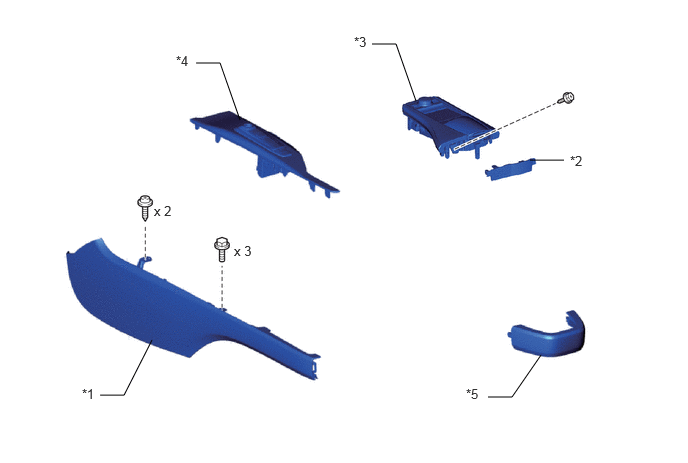

Fig 1: Trip Switch Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BOX PANEL SUB-ASSEMBLY	*2	CONSOLE PLATE
*3	RADIO REMOTE TUNING SWITCH ASSEMBLY	*4	SHIFTING HOLE COVER ASSEMBLY
*5	UPPER CONSOLE BOX	-	-

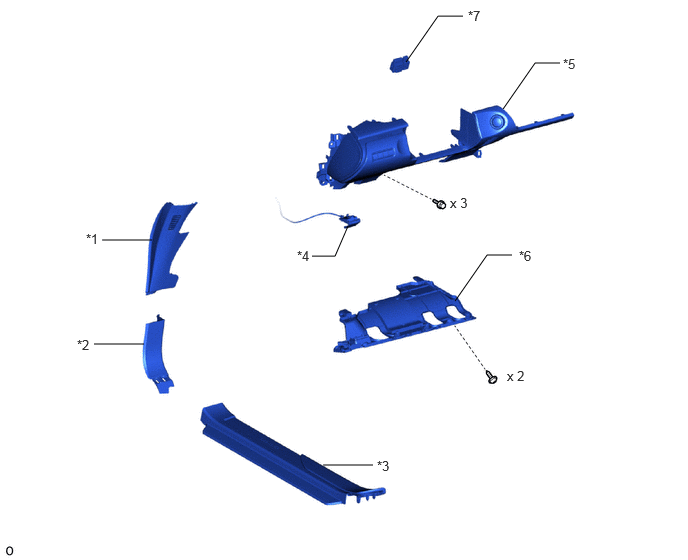

Fig 2: Trip Switch Replacement Components (2 Of 2)

*1	FRONT DOOR NO. 2 OPENING TRIM COVER LH	*2	FRONT DOOR OPENING TRIM COVER LH
*3	FRONT DOOR SCUFF PLATE LH	*4	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*5	NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	*6	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*7	TRIP SWITCH	-	-
