Inspection [07/2020 - 05/2023]: Procedure
- INSPECT CLOCK ASSEMBLY
- Check illumination.

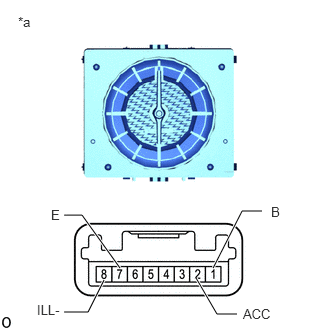

*a Component without harness connected
(Clock Assembly)- Apply battery voltage to the clock assembly and check that it illuminates.
OK
Condition Specified Condition Battery positive (+) → Terminal 1 (B)
Battery positive (+) → Terminal 2 (ACC)
Battery negative (-) → Terminal 7 (E)
Battery negative (-) → Terminal 8 (ILL-)Illuminates If the result is not as specified, replace the clock assembly.
- Apply battery voltage to the clock assembly and check that it illuminates.
- Check illumination.
