Reassembly [07/2020 - ]: Procedure

1. When using a new roof headlining assembly:

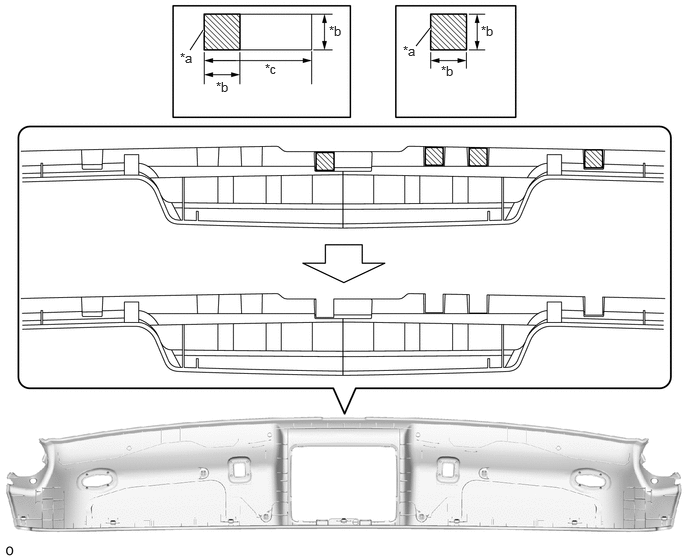

   1. Using a knife, cut the roof headlining at the markings as shown in the illustration.

      HINT:

      Make sure to cut the roof headlining at the same positions as the removed roof headlining.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Marking	*b	10 mm (0.394 in.)
      *c	30 mm (1.18 in.)	-	-
      	Cut Area	-	-

2. Attach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Marking
   	Tape

3. Apply tape to the position shown in the illustration to install the No. 1 roof wire to the roof headlining assembly.

Refer to PROCEDURE - Step 1

HINT:

Use the same procedure described for the LH side.

1. Apply tape to the position shown in the illustration to install 2 No. 1 roof silencer pads.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Marking
   	Tape
