Removal [07/2020 - ]: Procedure

  1. REMOVE TRIP SWITCH

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE NO. 3 COMBINATION SWITCH ASSEMBLY

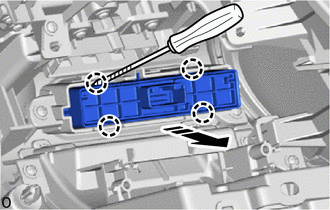

    1. GTY815610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape

      Using a thin-bladed screwdriver, detach the claw and remove the No. 3 combination switch assembly.

      HINT:

      Tape the thin-bladed screwdriver tip before use.
