HEADUP Display System - Diagnostic Codes & Circuit Tests (Convertible)
>>
HEADUP Display System
>>
DTC B1321-87: Lost Communication with EMV Missing Message [07/2020 - 05/2023]
>>
Wiring Diagram
DTC B1321-87: Lost Communication with EMV Missing Message [07/2020 - 05/2023]: Wiring Diagram

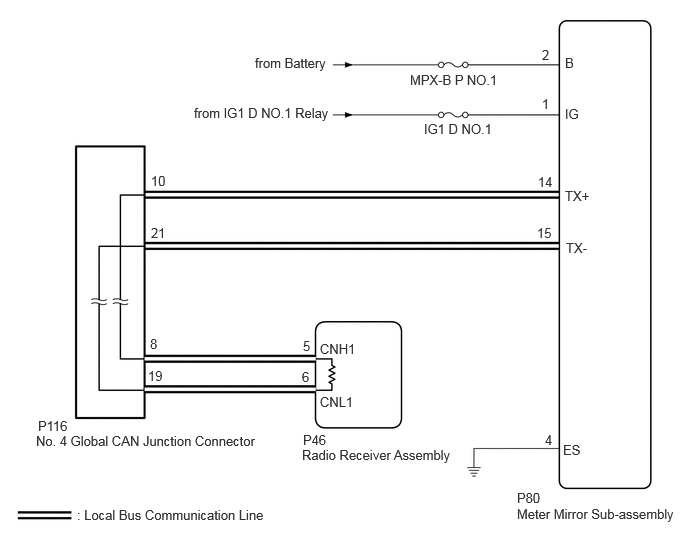

Fig 1: DTC B1321-87: Lost Communication with EMV Missing Message [07/2020 - 05/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
